Form Traveller
For continuous in-situ bridge construction and offer solutions to complex bridge construction projects
For continuous in-situ bridge construction and offer solutions to complex bridge construction projects

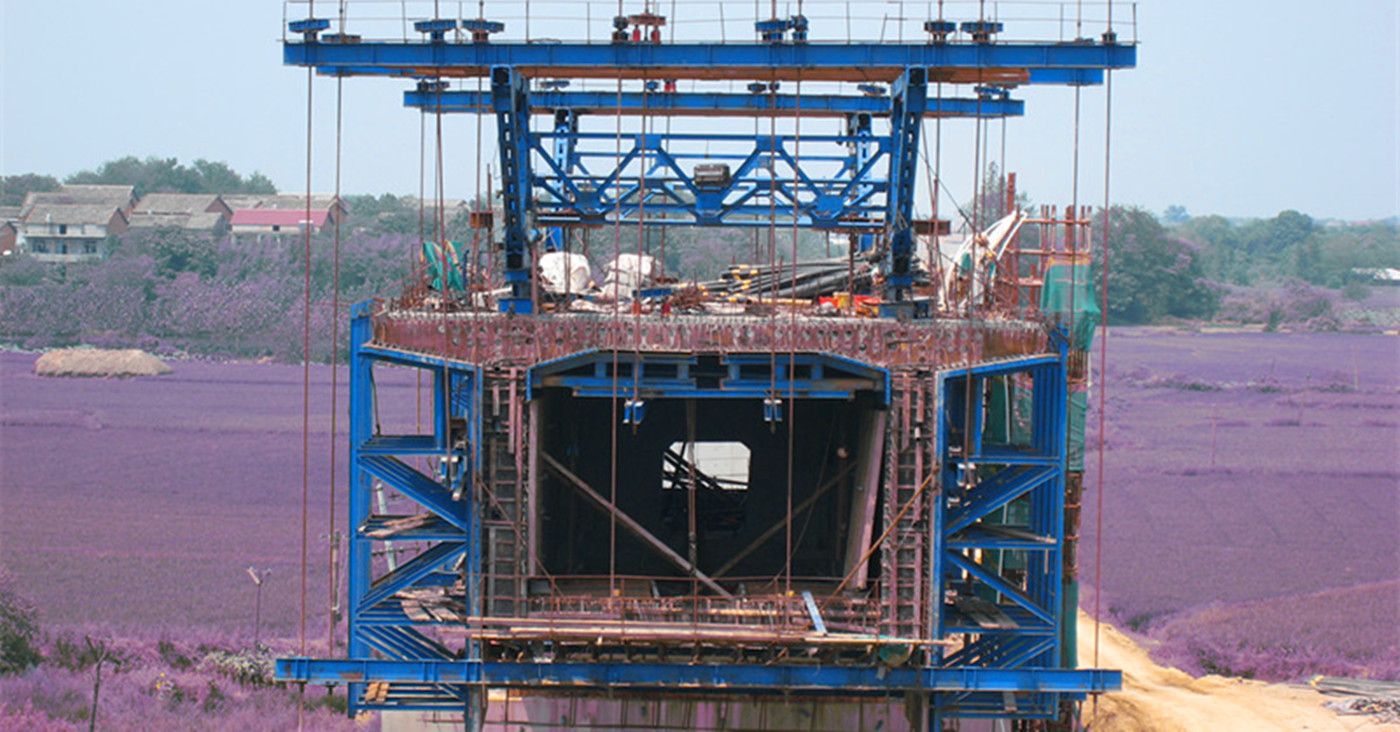

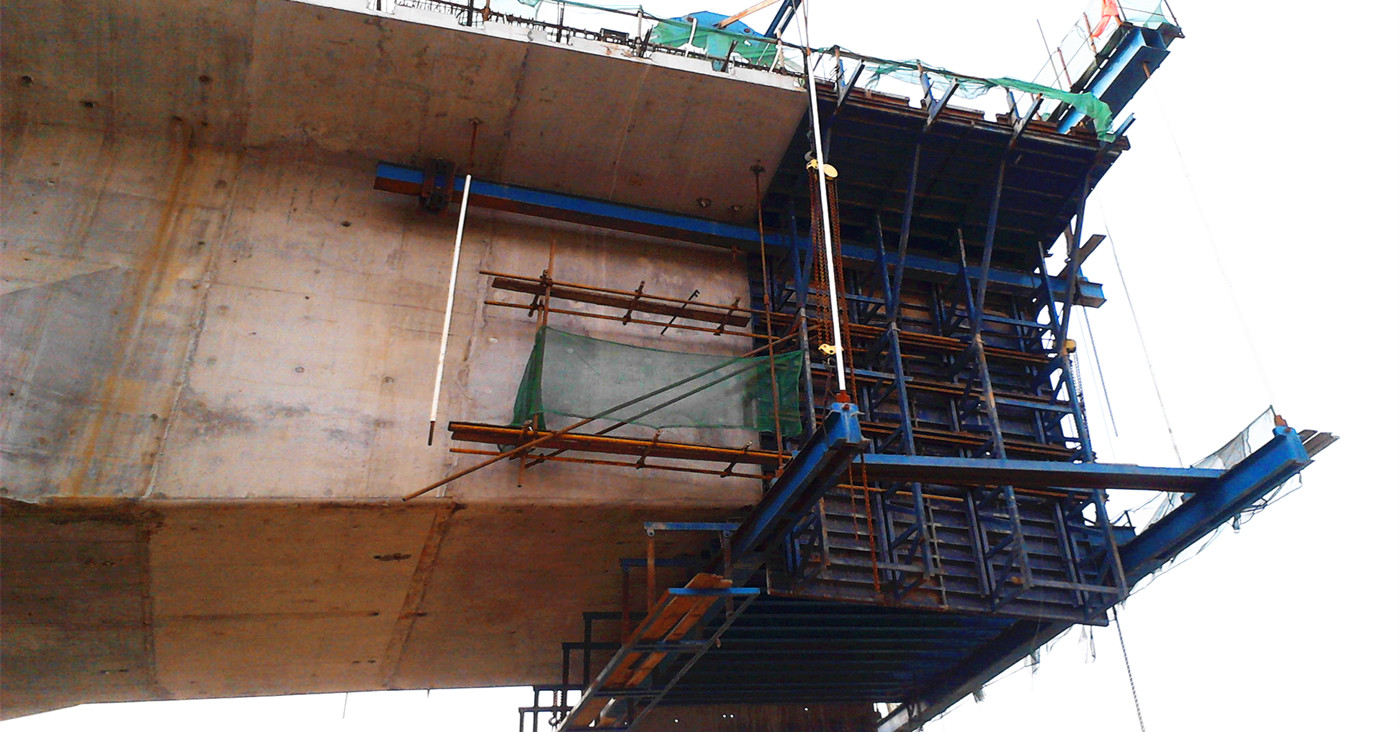

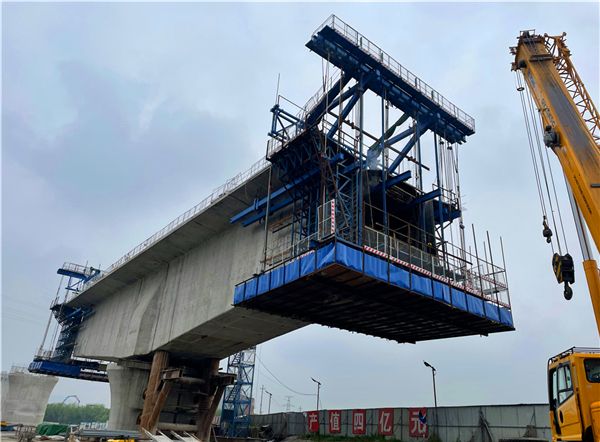

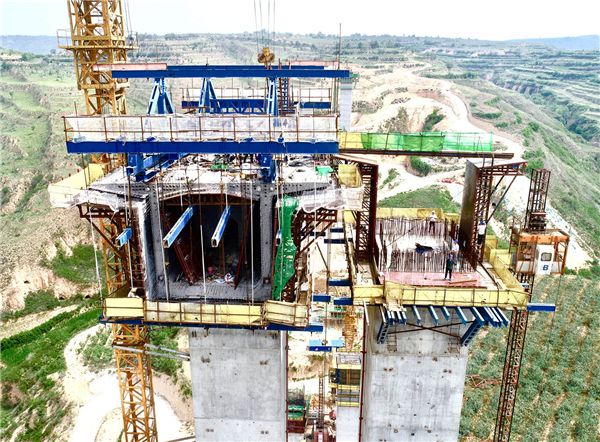

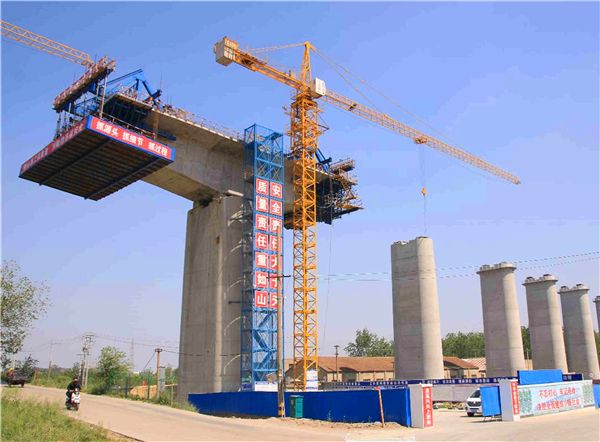

Zolo can offer both the overhead and the underslung type Form Traveller which are designed for free cantilever construction of pre-stressed girder and cable-stayed concrete bridges.

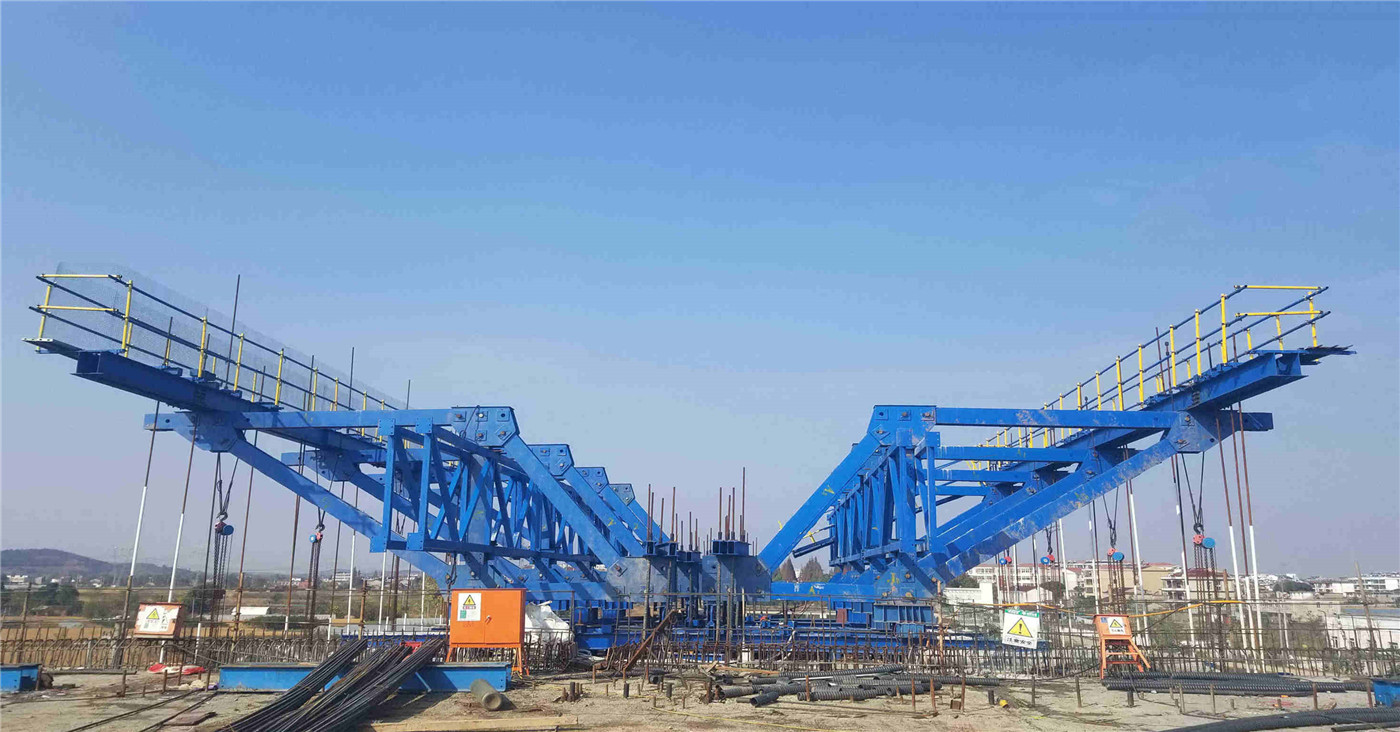

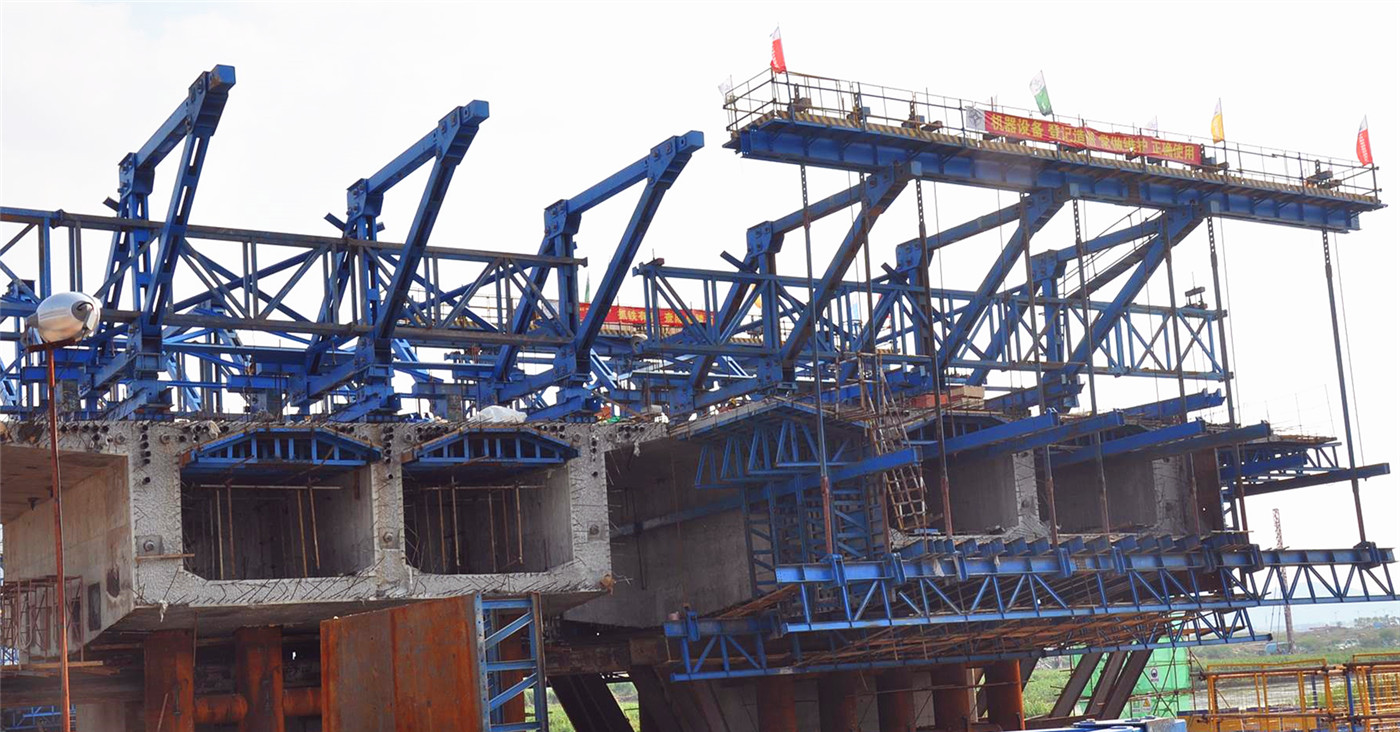

Zolo overhead form traveller has the advantages of simple structure, clear
stress, big operational space under the main frame, and easy installation
and removal.
The form traveller adopts wheels with bearing while rolling forward which
reduce the frictional resistance greatly during movement; At the sametime, the stainless steel plates are welded on the rails which reduced
the frictional resistance between the sliding bearing and the rails during
movement. The combination of these can reduce the movement cycle of the
form traveler by simple and convinient operation.
In terms of safety, the Zolo form traveler is equiped with walking protection
system which guarantee the absolute safety during working. It's safe, easy
and practical.

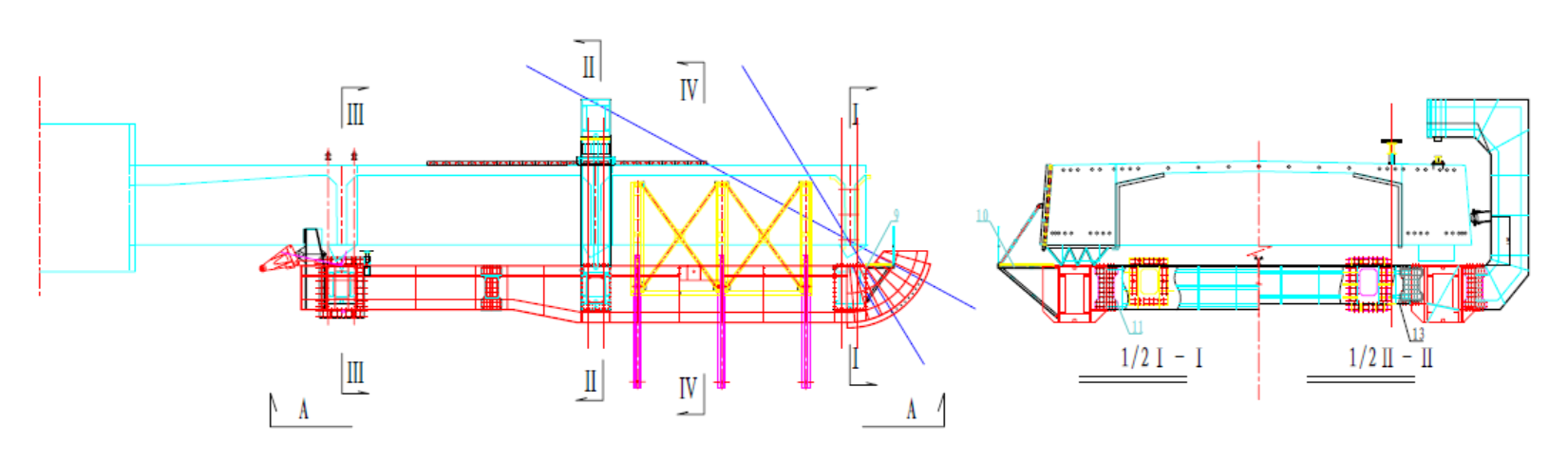

Zolo Stayed-cable cantilever traveller is applicable to large-scale stay-cable
cantilever casting bridge with wide bridge deck, heavy and long segment. Most of the componants concentrates on bottom frame and walking system. It has no main frame, at the same time, the lift is done by the stay-cable of the bridge. Comparing with other types, the single weight of stayed-cable cantilever traveller is heavier.
Zolo Labor services include installation on site, dismantling at the end of the project and supervision of launching. Furthermore, a long-term site assistance is granted
1. | Safety | Comply with China GB standard and Euro EN. |
2. | Easy Handling | Zolo form traveller is easy to use even by persons who have never worked with it. |
3. | Cost-Effective | Zolo design and construct form traveller to fit client project needs to optimize every Zolo form traveller to save clients' labor costs. Meanwhile, the form systems are designed being lighter – minimizing logistics costs. |
4. | Flexible | Zolo form traveller can be tailor made for different types and various segment lengths. |
5. | Proven&Robust Design | Years of business so that we have accumulated rich experience in products production management and excellent, mature design philosophy. |

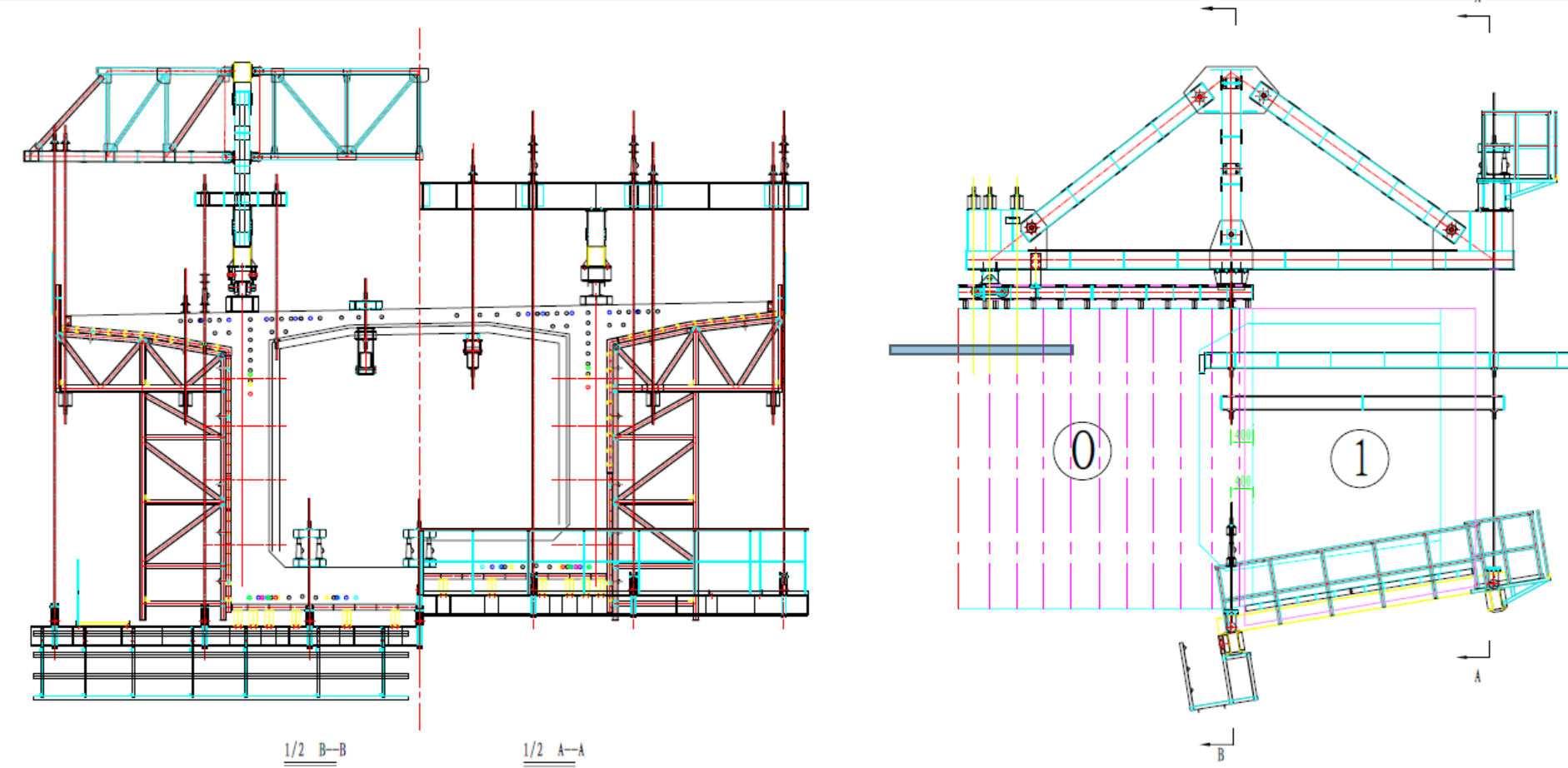

Zolo OverHead Type Form Traveller
Zolo Under Slung Type Form Traveller
