ZClimb™ ACF100 Self-Climbing System Formwork
ZOLO ZCLIMB™ ACF100 has the same methodology and features with ZCLIMB™ ACF50/80 system. Compare with ACF50/80 system, ZOLO ZCLIMB™ ACF100 is designed to meet the increased requirements such as greater impacts, extra working platforms or live loads with 10 t lifting capacity per parallel lifting bracket.

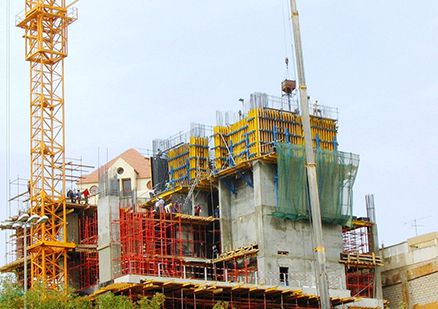

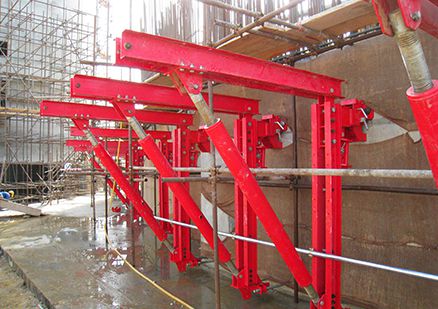

Modern climbing formwork systems consist of large wall forms mounted on climbing scaffolds. As part of the first concrete pour, the climbing supports are attached to pre-set anchor bolts. This ensures the transfer of wind and constant loads from the wall formwork and supports. The formwork also used two climbing brackets to create a working platform to align and support the panels.
After pouring the concrete, the lifting boots and screws were installed. Both the climbing platform and the formwork were then lifted to a new suspension point for the next pouring cycle.
