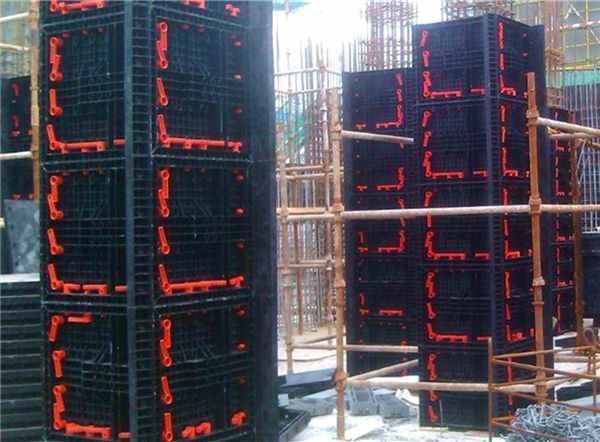

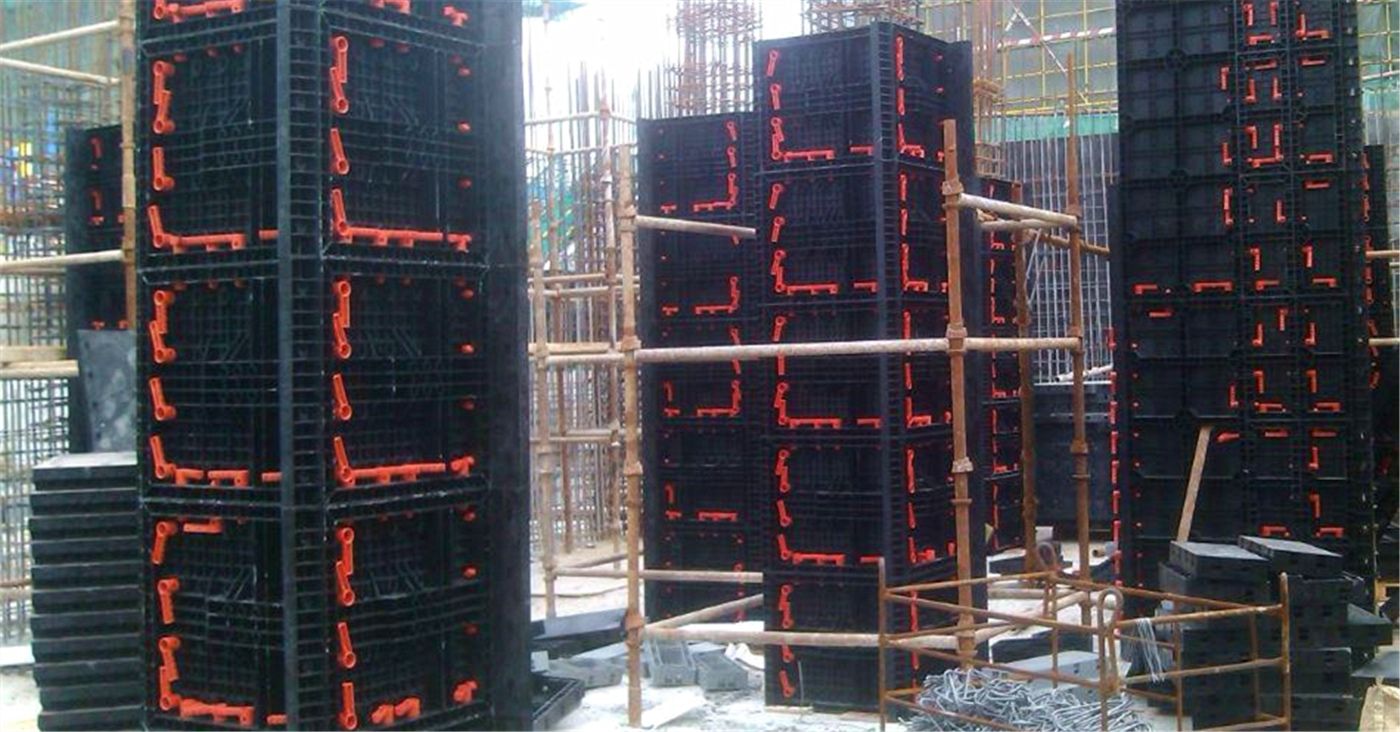

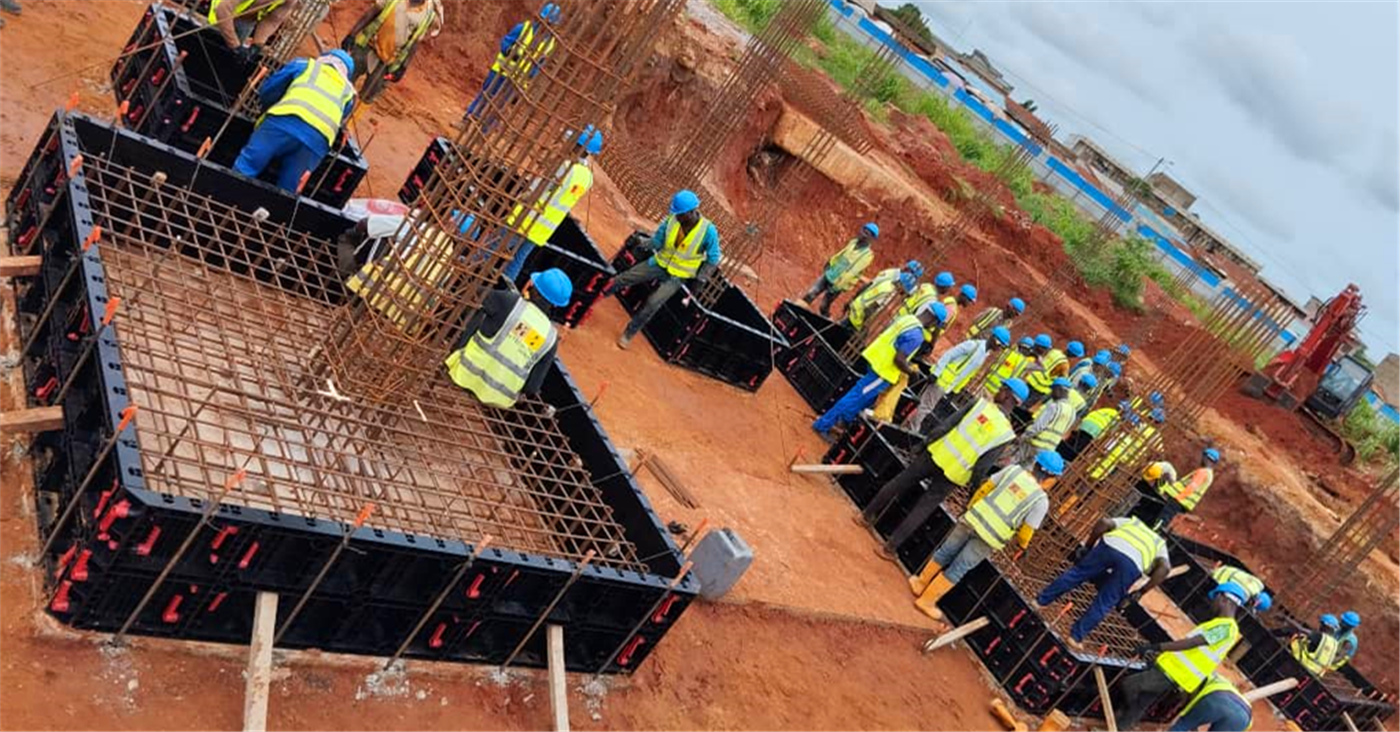

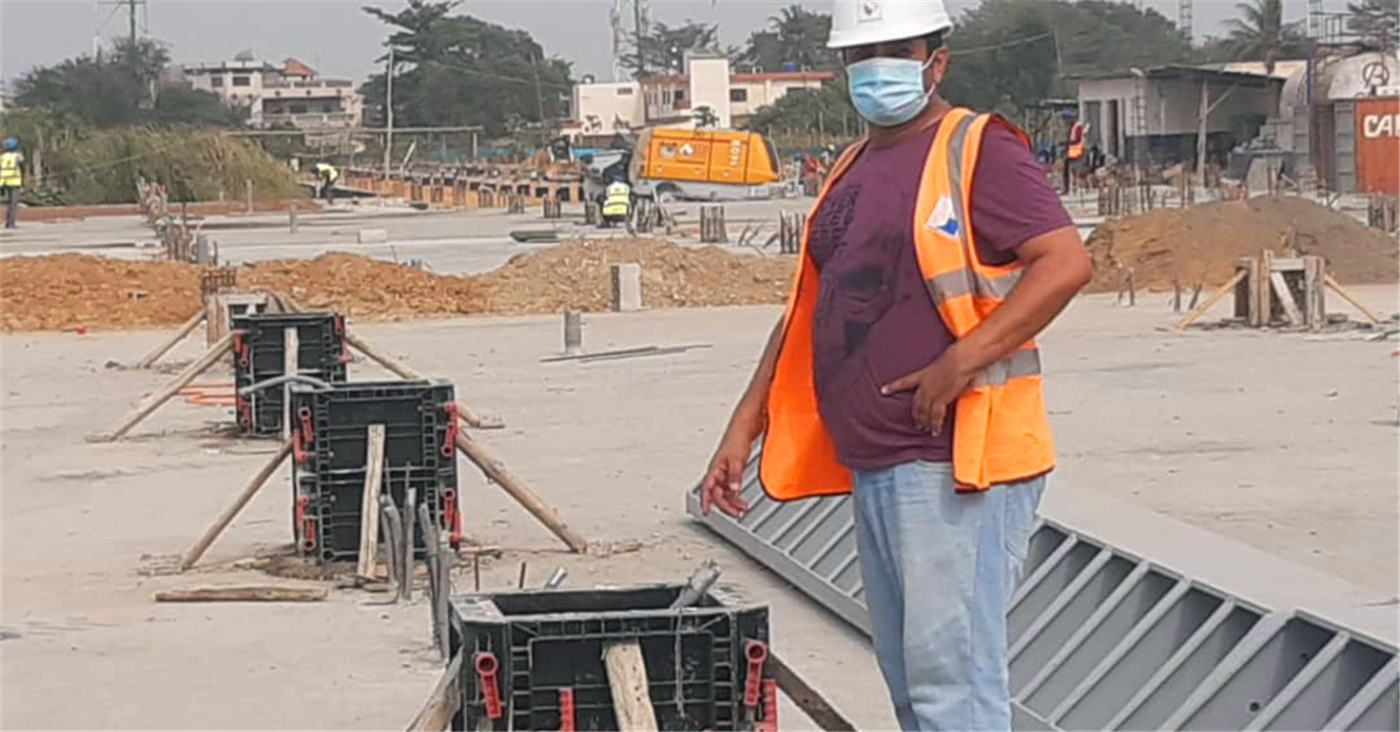

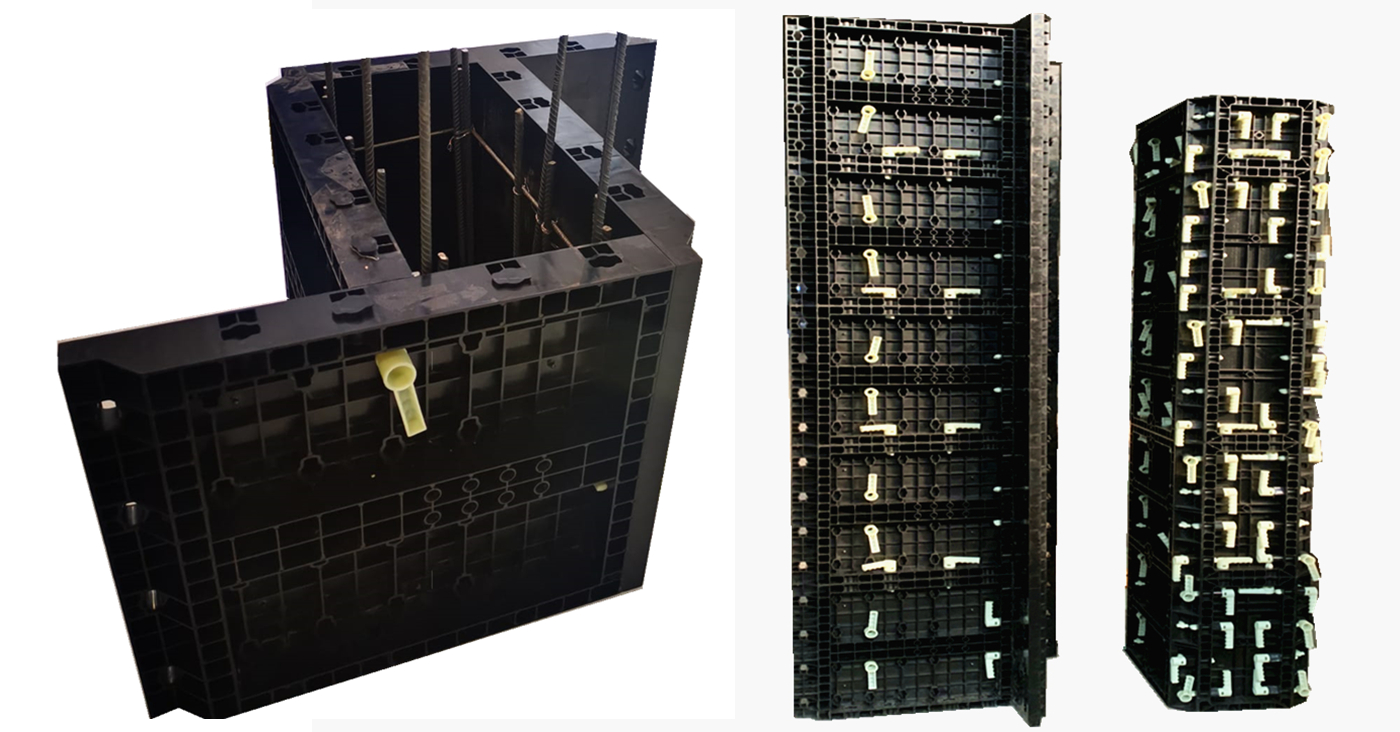

Zolo ZPLASTK™80 Adjustable Plastic Column Formwork is a Easy Set Up column formwork system. It is almost the best choice to construct column and plinth.
It can construct different column sizes with same panels.
ZPLASTK™80 Adjustable Plastic Column Formwork is a Easy Set Up column formwork system. It is almost the best choice to construct column,plinth.
It can construct different column sizes with same panels.

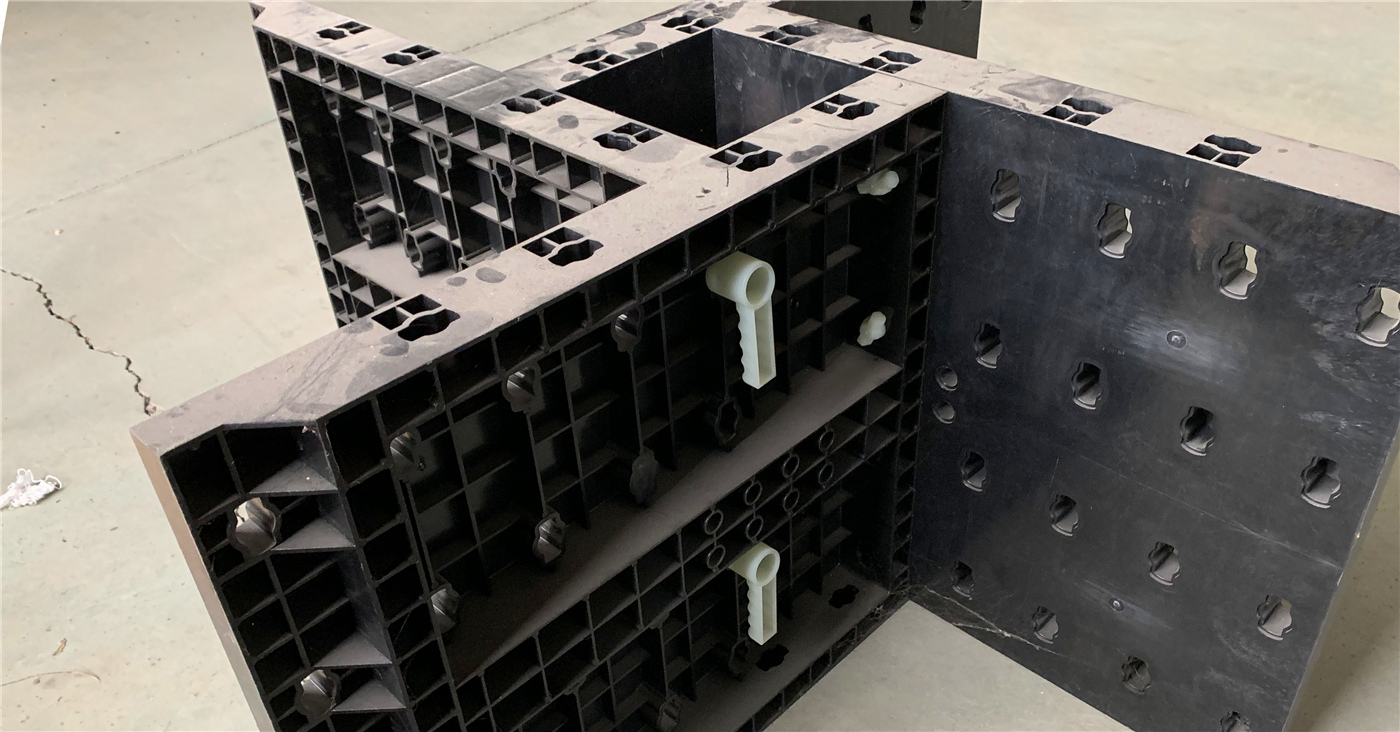

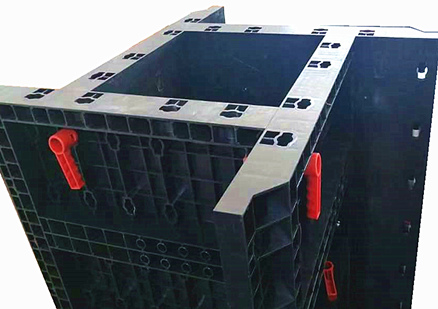

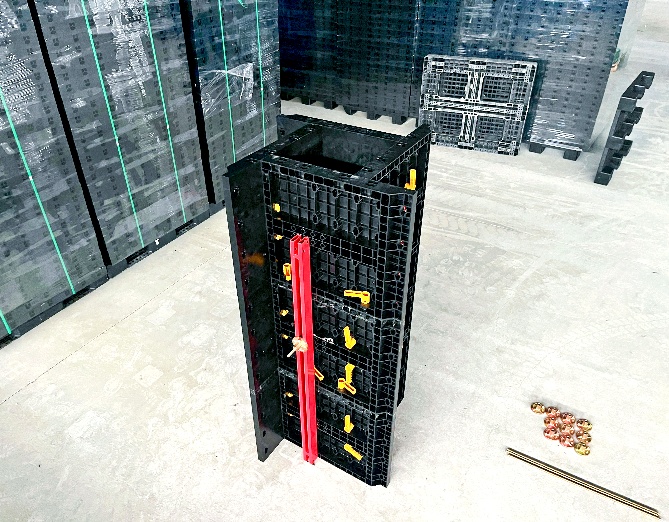

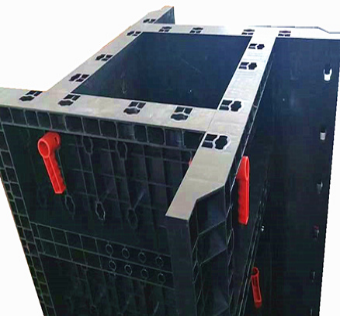

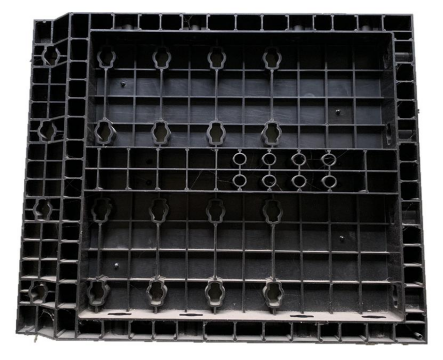

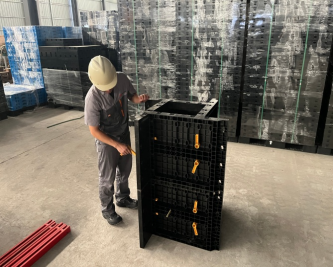

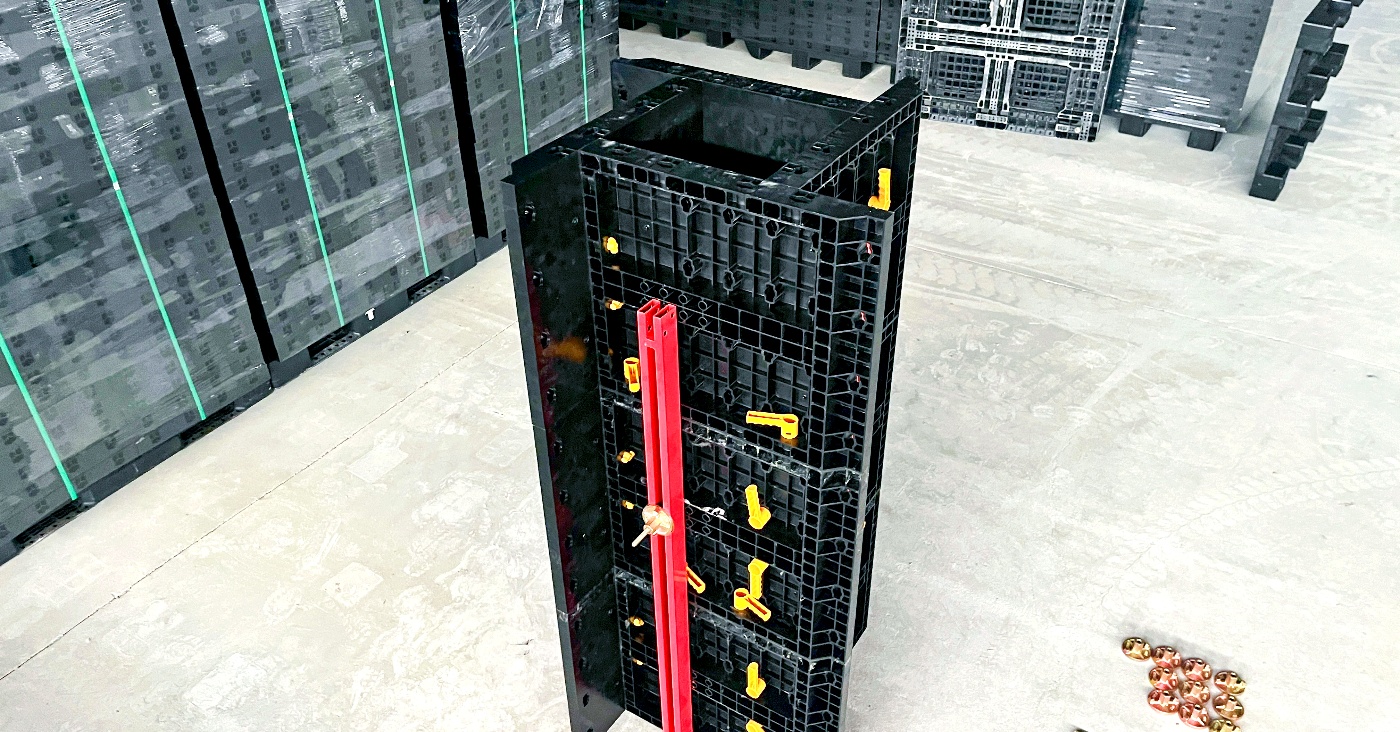

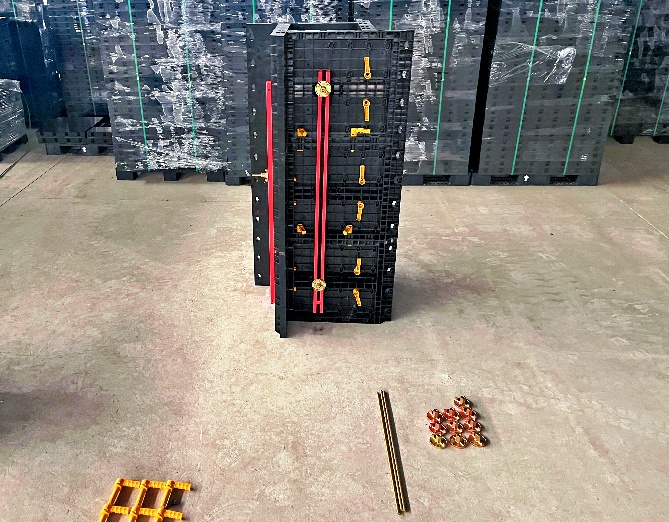

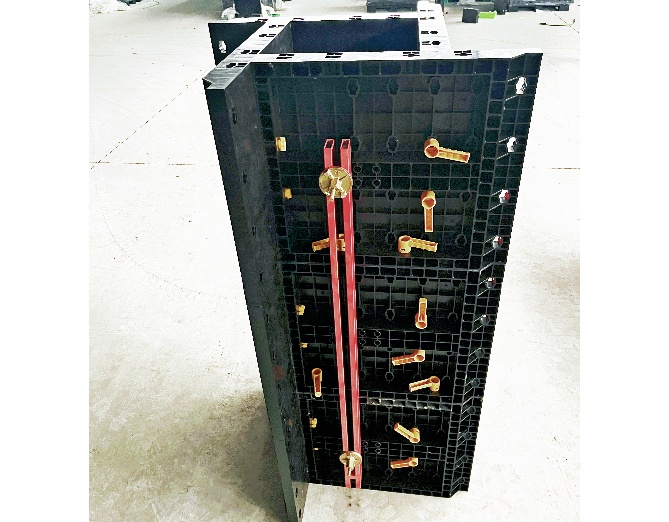

A. Easy Set Up: ZPLASTK™80 Adjustable Plastic Column Formwork can be firmly locked by simply turn the special handles to 90 degree. The panels have rib on the back, which makes the system need not traditional wood blocks and nails. The panels have holes to fit tie rod, make sure the strength of the whole system.

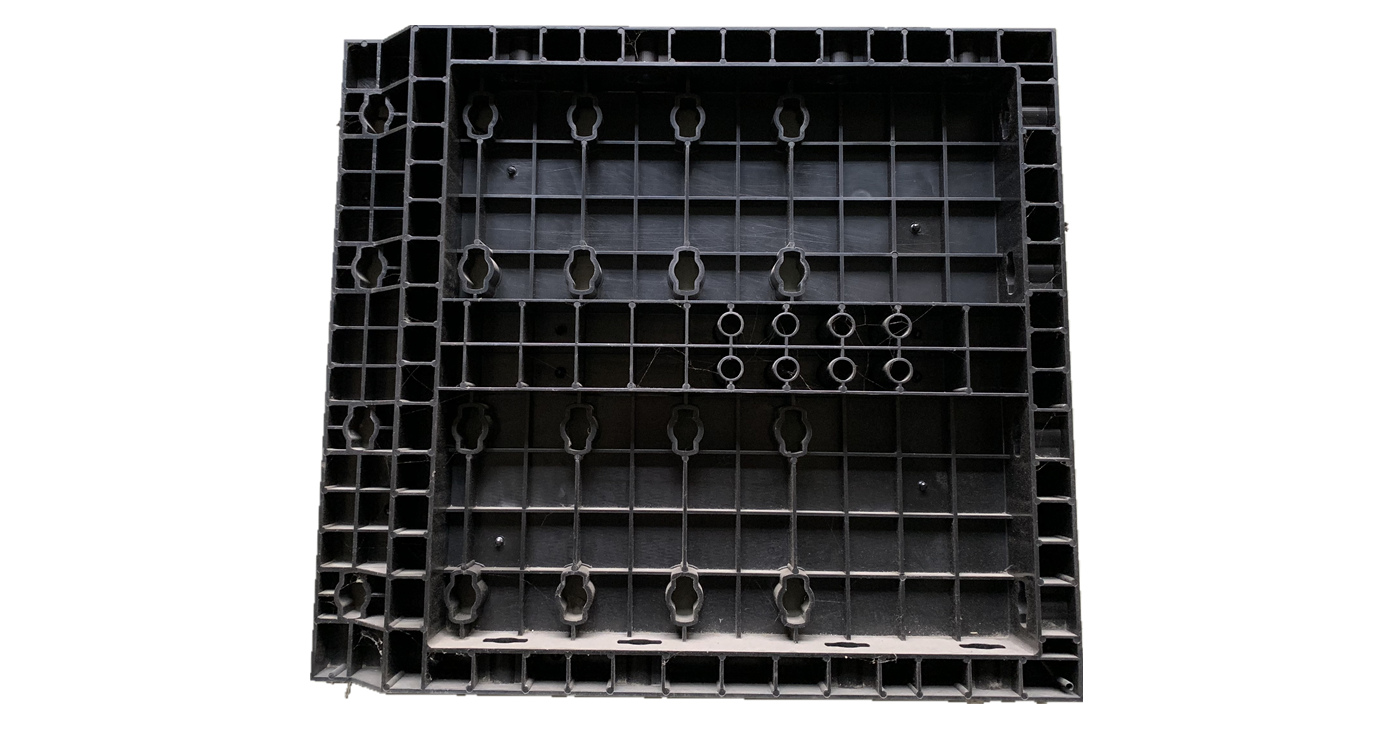

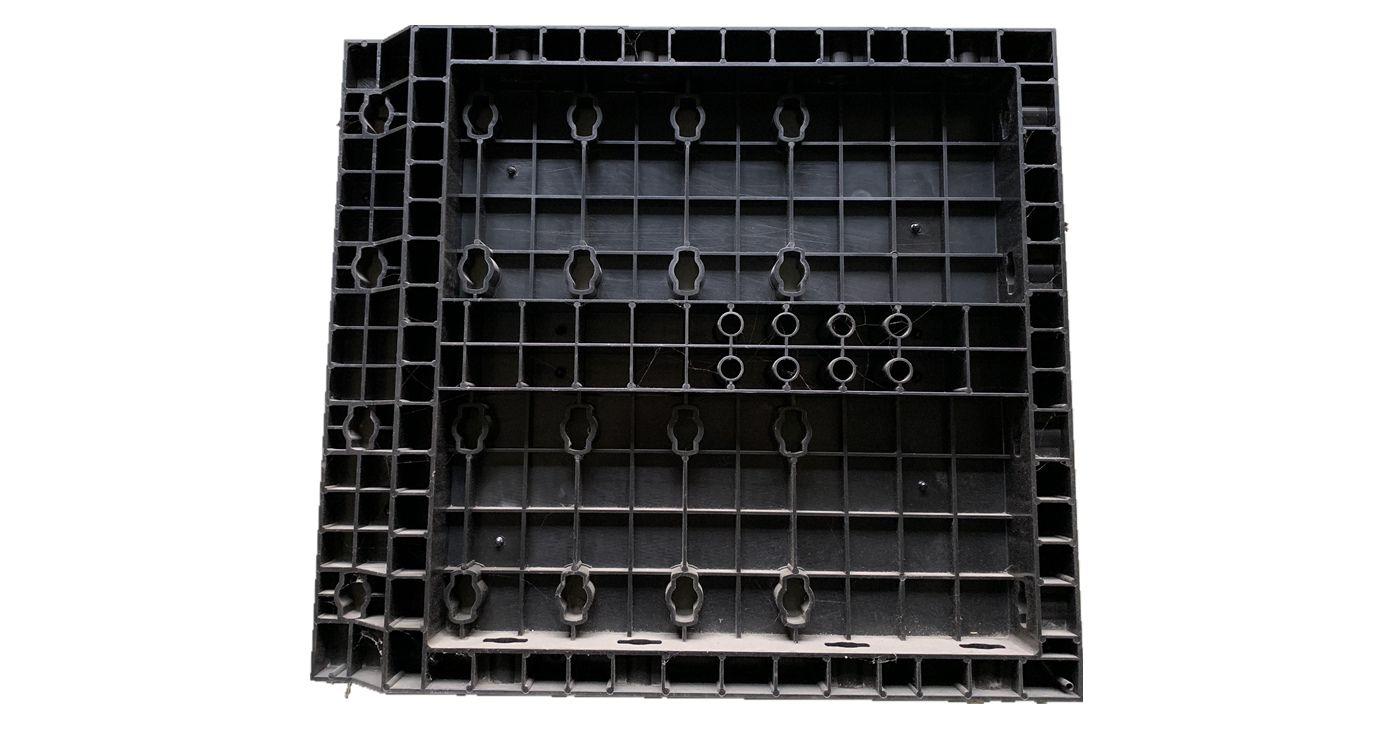

B. Modularity: ZPLASTK™80 Adjustable Plastic Column Formwork compsed by different size of panels, the main item is 600x670 column panel, Due to the variety of column size, this column system can form almost all size column of multiple by 5cm.
C. Environment Friendly: The material of ZPLASTK™80 Adjustable Plastic Column Formwork is PC-ABS mixed with special glass fibers which enable panels to hold high pressures.
D. Fair-Faced Concrete: The concrete will not stick to plastic , thus ZPLASTK™80 Adjustable Plastic Column Formwork panels need no any release agent before using. The face can be cleaned simply by water. The surface of the concrete after pouring will be very smooth and reach FAIR-FACED CONCRETE level.
| Material | ABS |
| Maximum Lateral Pressure for Column | 80 KN/㎡ |
| Life Time | 150Times |
| Adjustable Range | 200mm,250mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm |

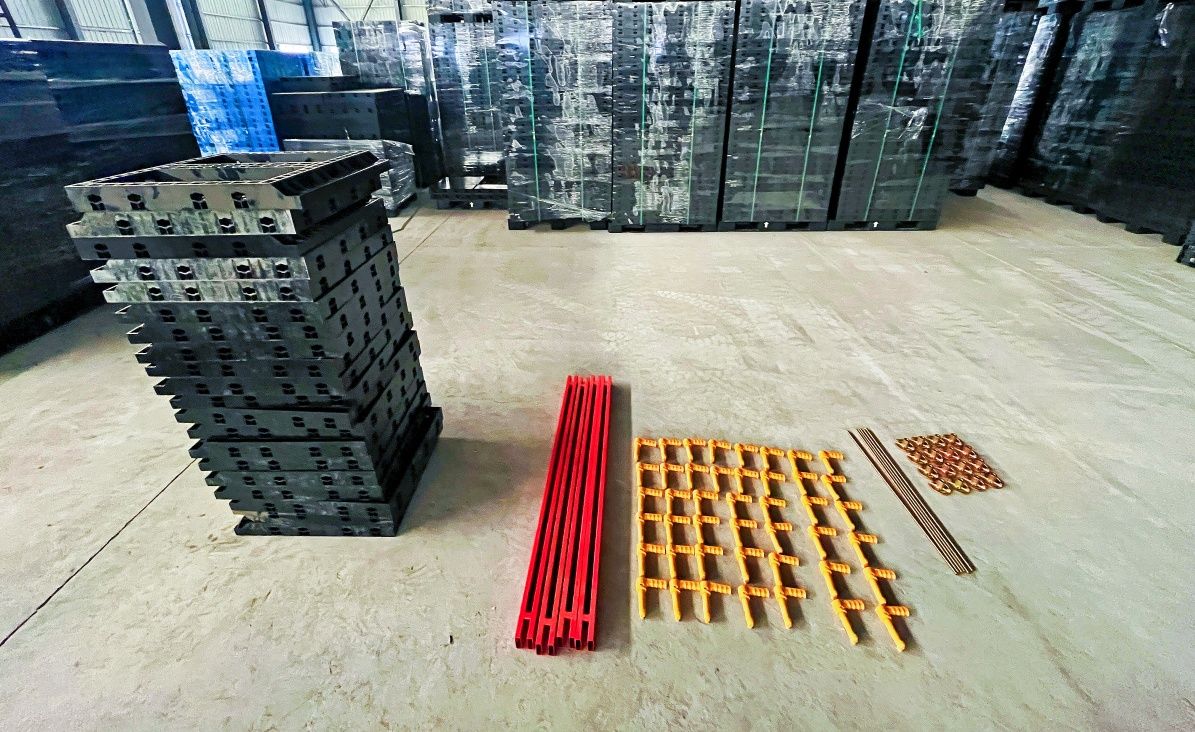

| Fittings | Spacer, Tie-Rod, Wing-Nut, Steel Waler, Pull-Push Props |
