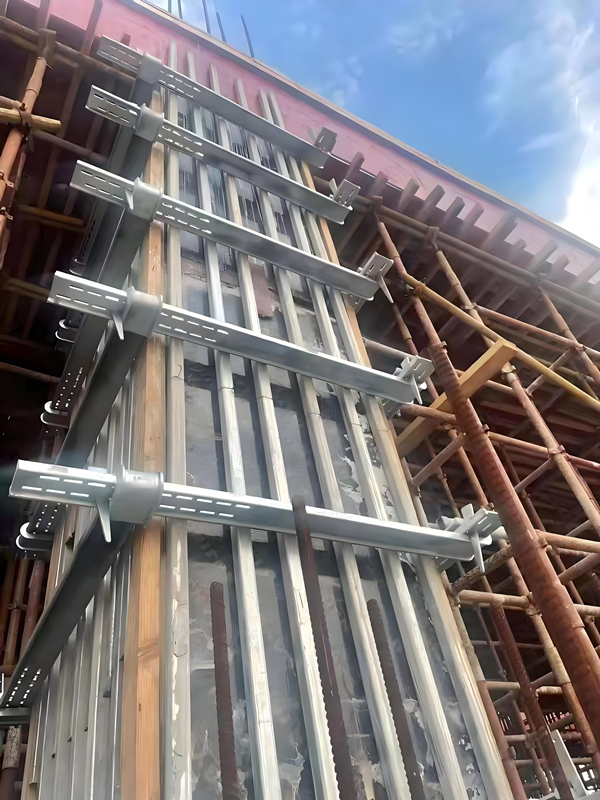

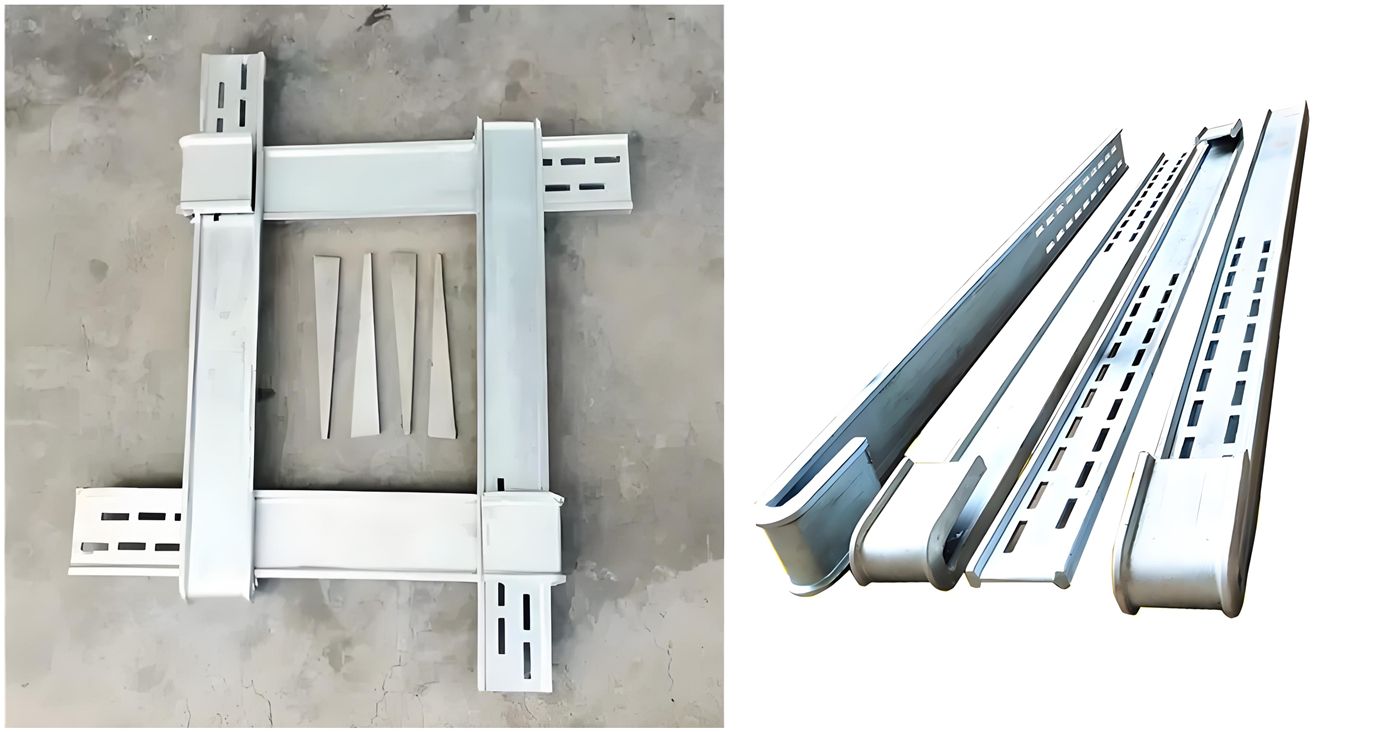

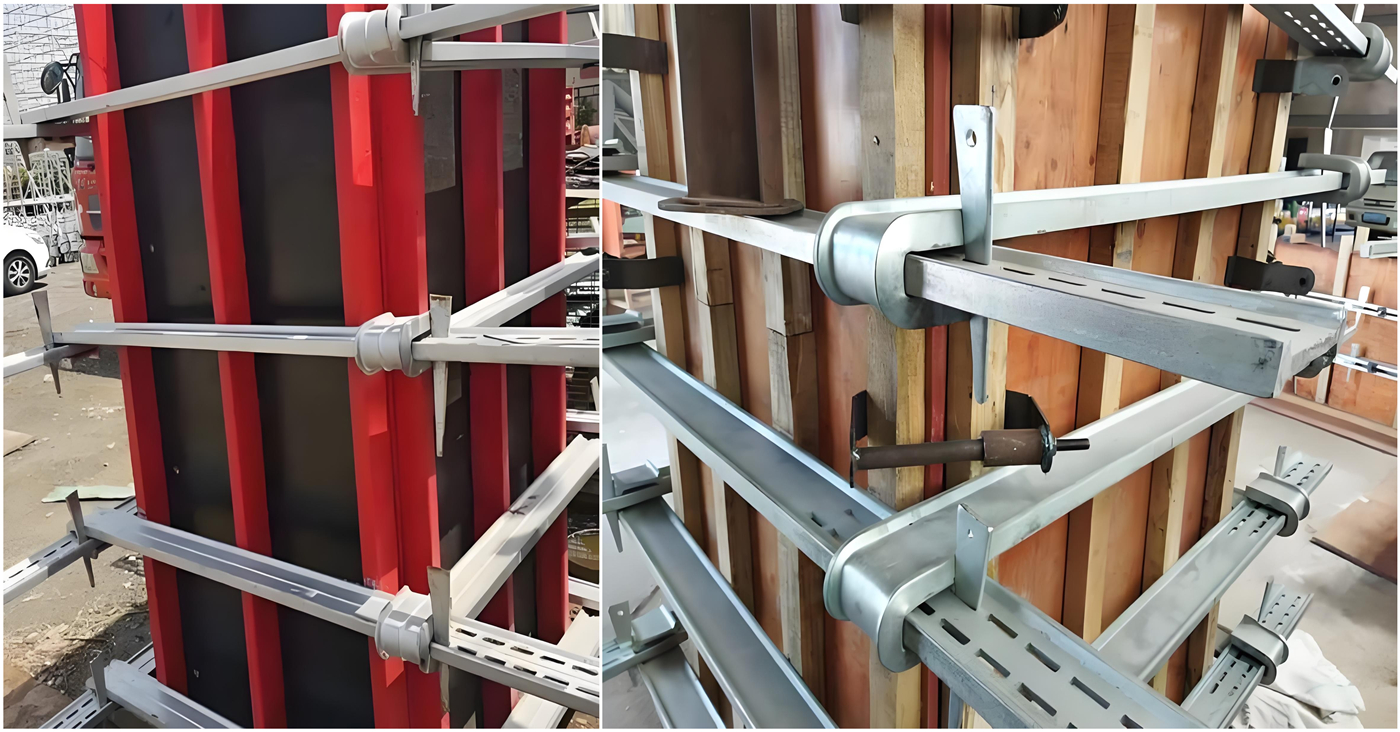

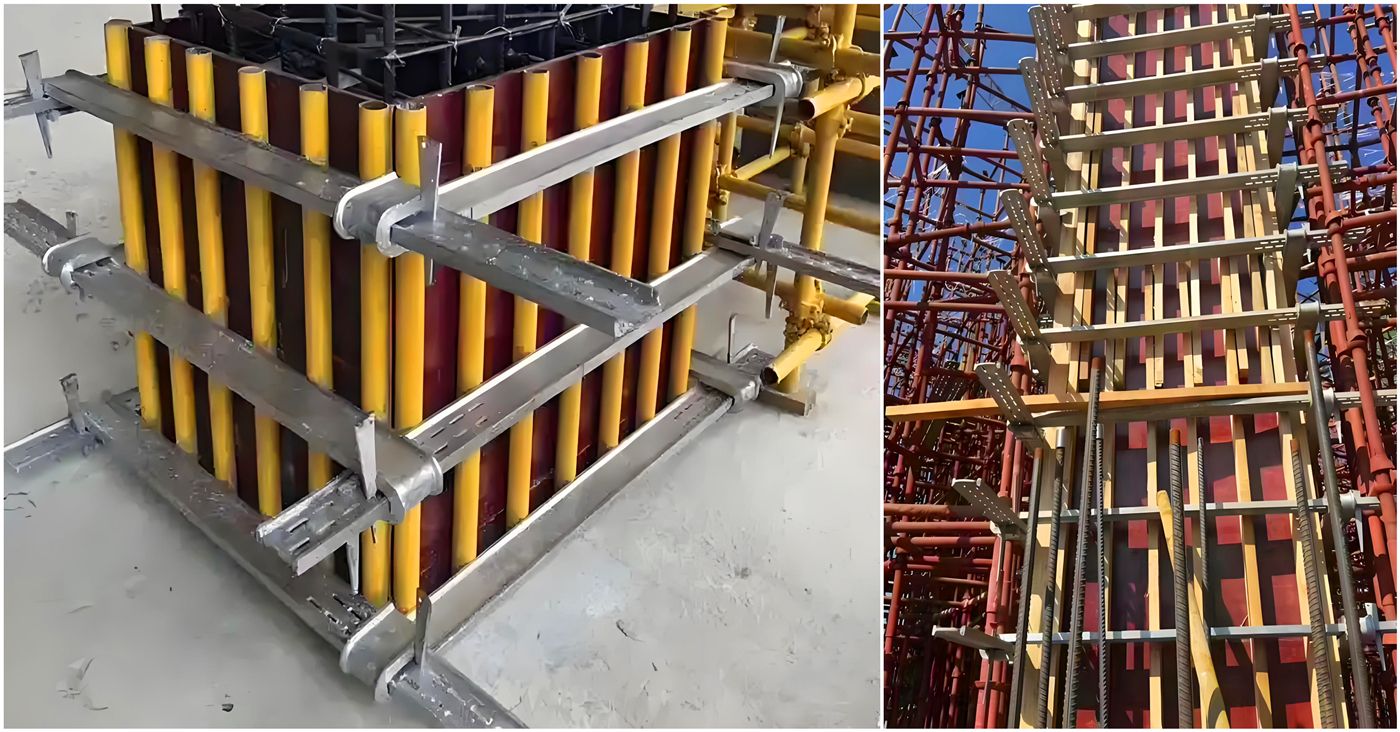

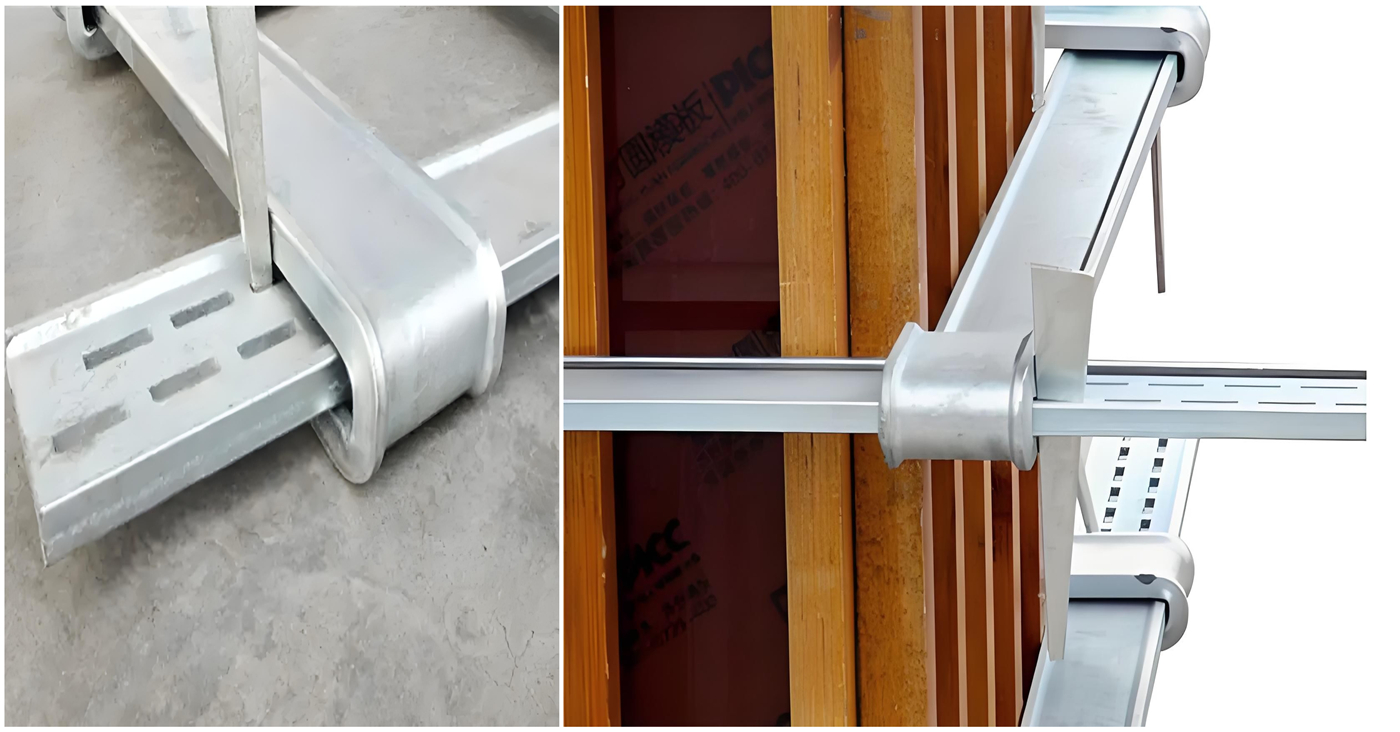

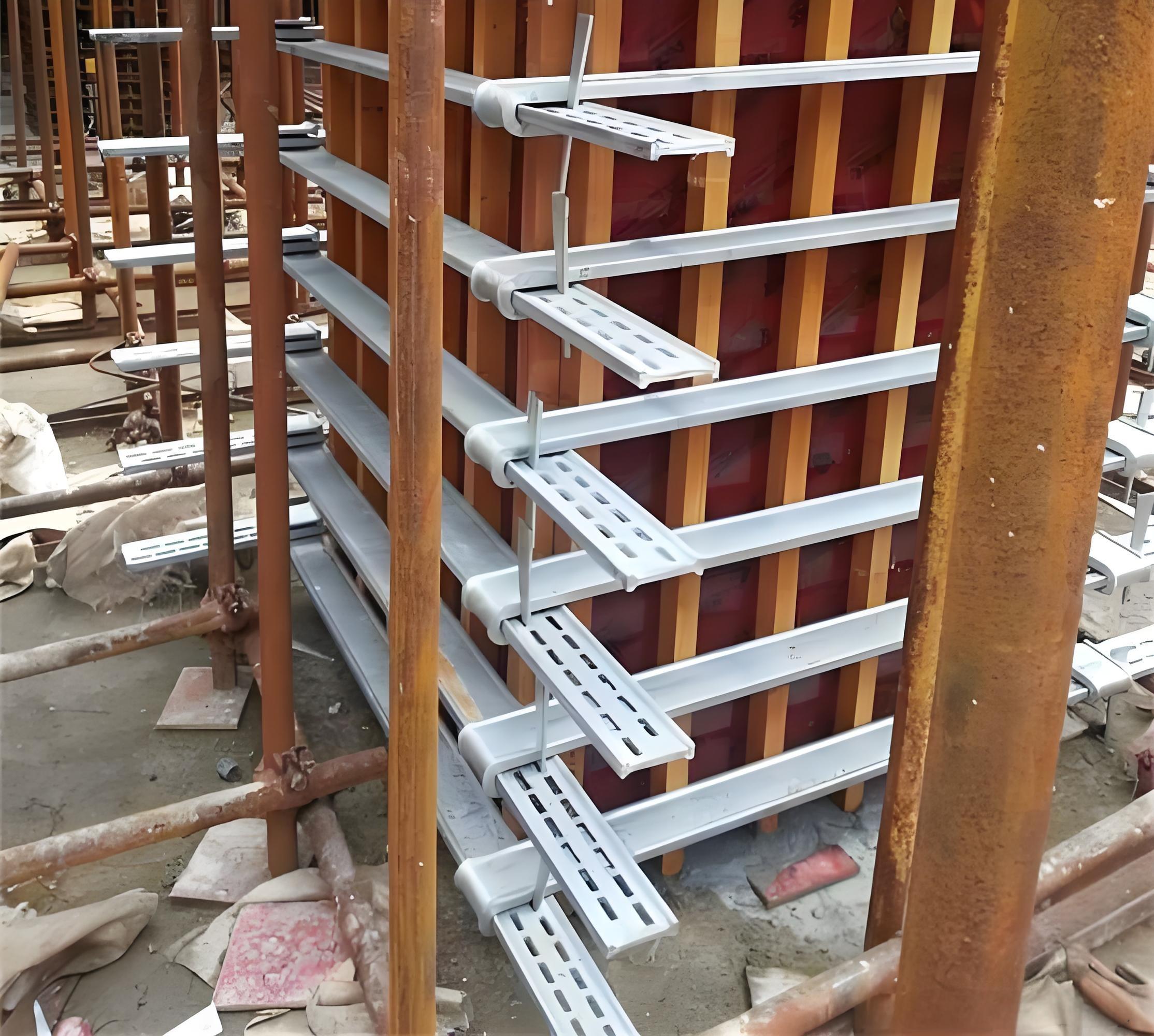

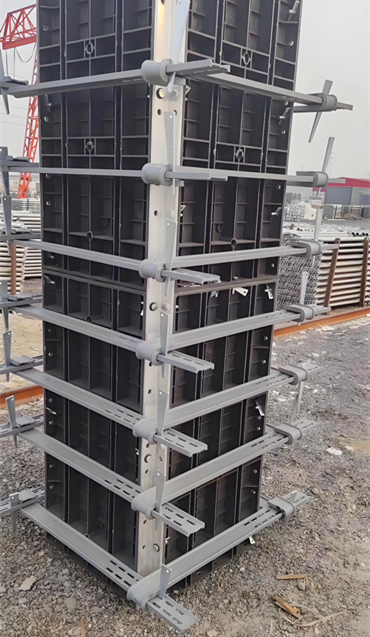

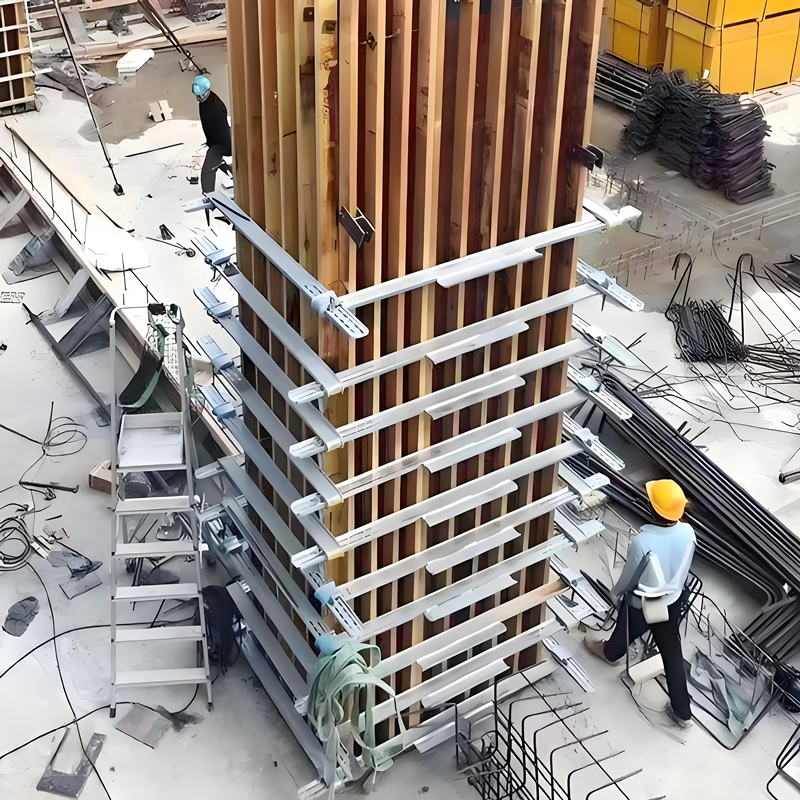

No more through-tie needed, save second plastering cost. made by Q345B steel,galvanized, has the advantage with lightweight, easy operation, 1 set of clamps can be applied on different sized columns,no other accessories required for fixing and highly re-use times.
| Advantage | |
| 1. | No more through-tie needed, save second plastering cost |
| 2. | Adjustable to match various column size. |
| 3. | Easy Operations, no other accessories required for fixing |
| 4. | Highly Re-Use Times |
| Adjust Range for Column (mm) | Clamp Width (mm) | Weight per Set (kgs) |
| 400-600 | 80 | 21.6 |
| 500-800 | 80 | 26.2 |
| 700-1000 | 100 | 51 |
| 900-1200 | 100 | 57.2 |
| 1100-1400 | 100 | 65 |
| 1300-1600 | 100 | 70.4 |
| 1500-1800 | 100 | 115.8 |
| 1900-2100 | 100 | 129.8 |
| 2000-2300 | 100 | 147.3 |
