What Is Self-Climbing Formwork?

May. 21 ,2024 Share:

Self-climbing formwork is an advanced construction technology used predominantly for high-rise buildings and other tall structures. This method involves a formwork system that can lift itself vertically without the need for external cranes, allowing for continuous and efficient construction progress. The key components and processes involved in self-climbing formwork, its advantages, and its applications are detailed below.



Components and Mechanism


Formwork Panels: These are the primary molds into which concrete is poured. The panels are typically made of steel or aluminum and are designed to be robust and reusable. They form the vertical or horizontal surfaces of the concrete structure.



Climbing Mechanism: The self-climbing system uses hydraulic jacks or electric motors to elevate the formwork panels. These jacks are anchored to the concrete structure itself, either to previously cast sections or specially designed anchors, enabling the system to climb as construction progresses.



Support Structures: These include platforms for workers, storage for materials, and safety railings. The support structures move in tandem with the formwork, providing a stable and secure working environment.



Guiding Rails and Anchors: These components ensure the formwork system moves accurately and smoothly along the building's planned trajectory. The rails are fixed to the concrete, guiding the formwork's upward motion.

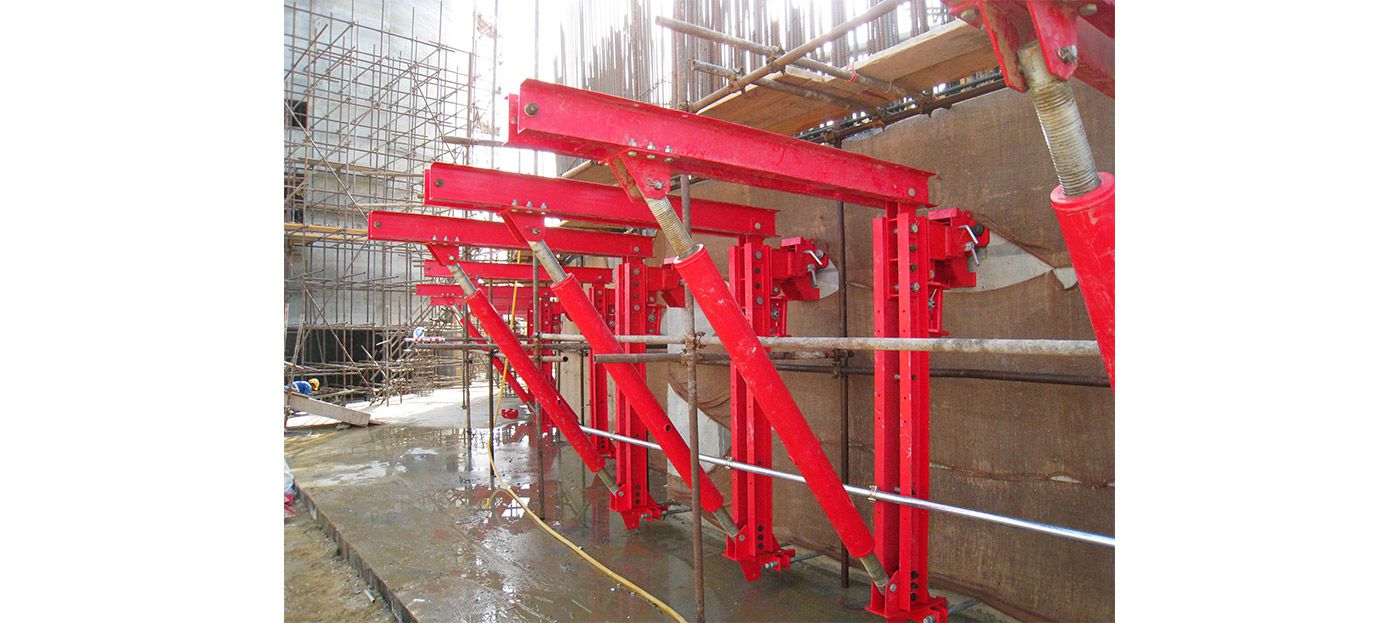

 Self-Climbing System Formwork

Self-Climbing System Formwork

Operation Process


Initial Setup: The formwork panels are assembled at the base of the structure and anchored securely to the foundation or the initial concrete pour. Hydraulic jacks and guiding rails are installed.



Concrete Pouring: Concrete is poured into the formwork to create the desired structural element, such as walls or columns. Once the concrete reaches sufficient strength, the formwork is prepared for climbing.



Climbing Phase: The hydraulic jacks lift the entire formwork system to the next level. This process is carefully controlled to maintain alignment and ensure safety.



Repetition: The cycle of pouring concrete and climbing continues until the structure reaches its full height.



Advantages


Efficiency: Self-climbing formwork significantly accelerates construction timelines. Since it eliminates the need for cranes to reposition formwork, the process is faster and can often proceed in less time compared to traditional methods.



Safety: The integrated platforms and consistent setup provide a secure environment for workers. This reduces the risk associated with moving formwork manually and working at heights.



Cost-Effectiveness: Although the initial investment in self-climbing formwork is high, the system's reusability and efficiency lead to long-term cost savings. Reduced construction time translates into lower labor costs and earlier project completion.



Quality: The precision of the self-climbing system ensures high-quality concrete finishes and consistent structural integrity. This precision reduces the likelihood of errors and rework.



Weather Independence: Self-climbing formwork is less affected by weather conditions since the formwork and work platforms are integral and move together, offering better protection for workers and materials.

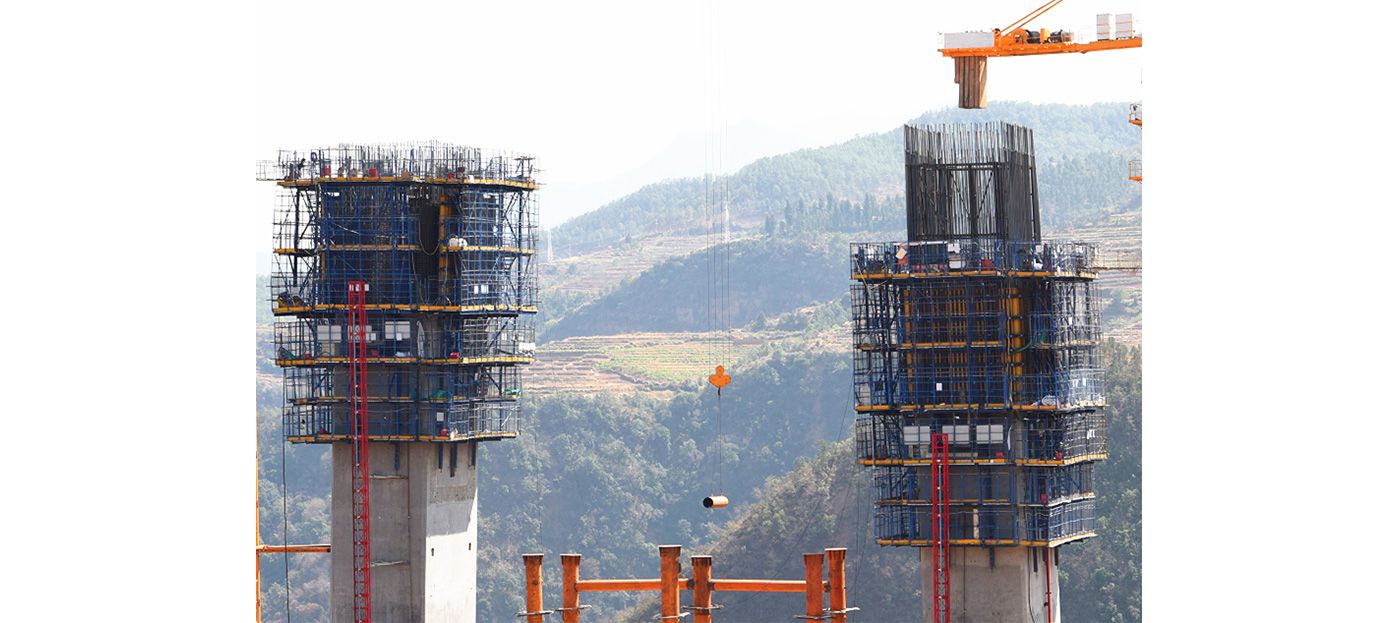

Self-Climbing System Formwork

 Self-Climbing System Formwork

Applications


Self-climbing formwork is ideal for high-rise buildings, skyscrapers, bridges, silos, and other tall structures. It is particularly beneficial in projects where:



Repetitive Elements: Structures with repeated floor plans or identical vertical elements benefit from the repetitive efficiency of self-climbing formwork.

High Safety Standards: Projects demanding rigorous safety standards find this system advantageous due to its inherent stability and integrated safety features.

Speed of Construction: Urban environments with tight construction schedules and high labor costs benefit from the expedited process offered by self-climbing formwork.


Conclusion


Self-climbing formwork is a transformative technology in the construction industry, enabling the efficient, safe, and high-quality erection of tall structures. Its automation and precision not only speed up the construction process but also ensure consistency and structural integrity. As urbanization continues to drive the demand for taller buildings, self-climbing form
