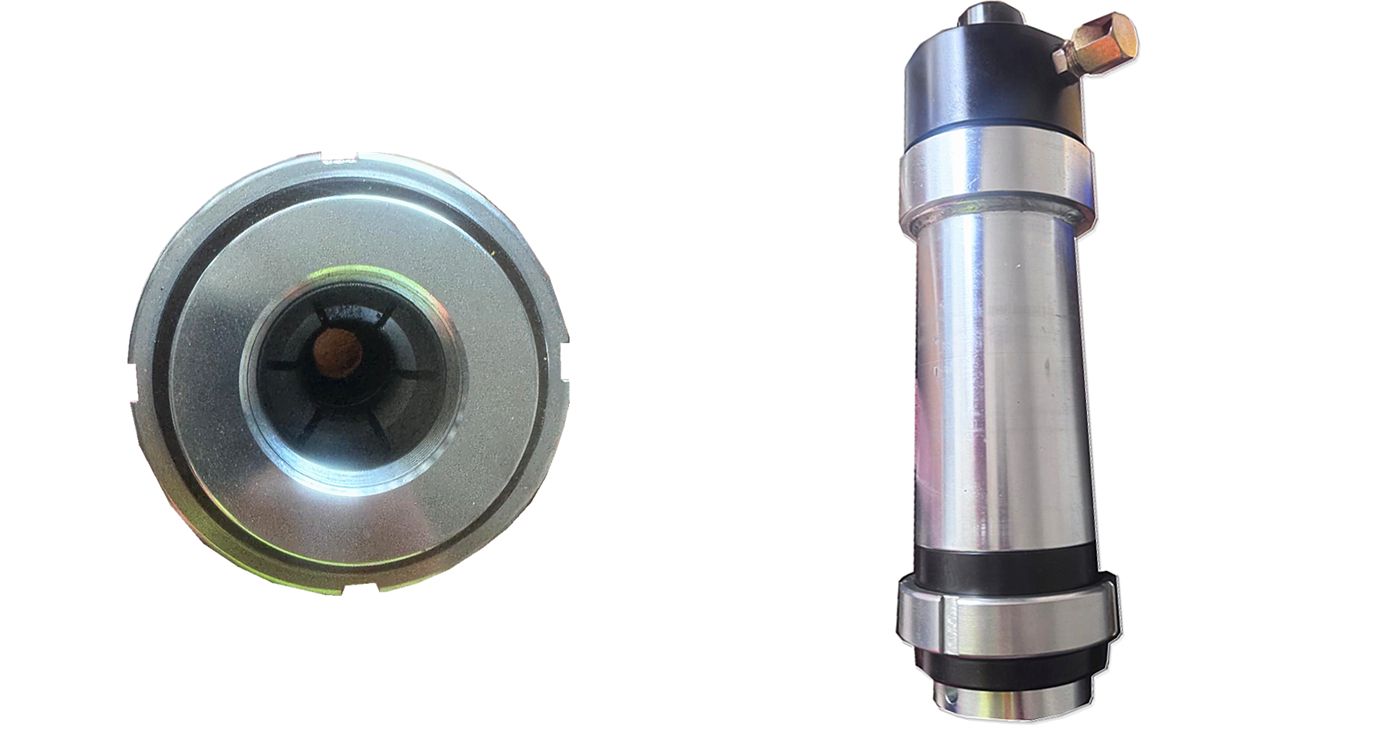

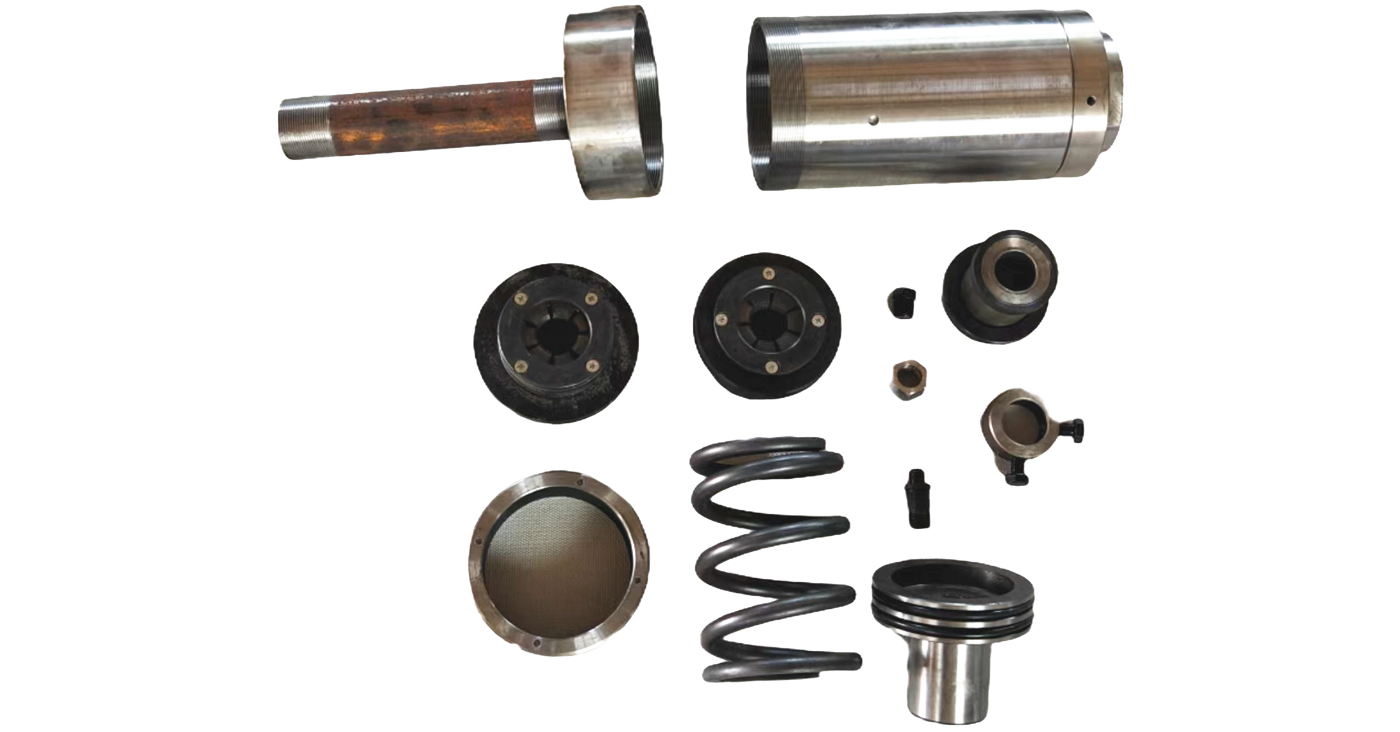

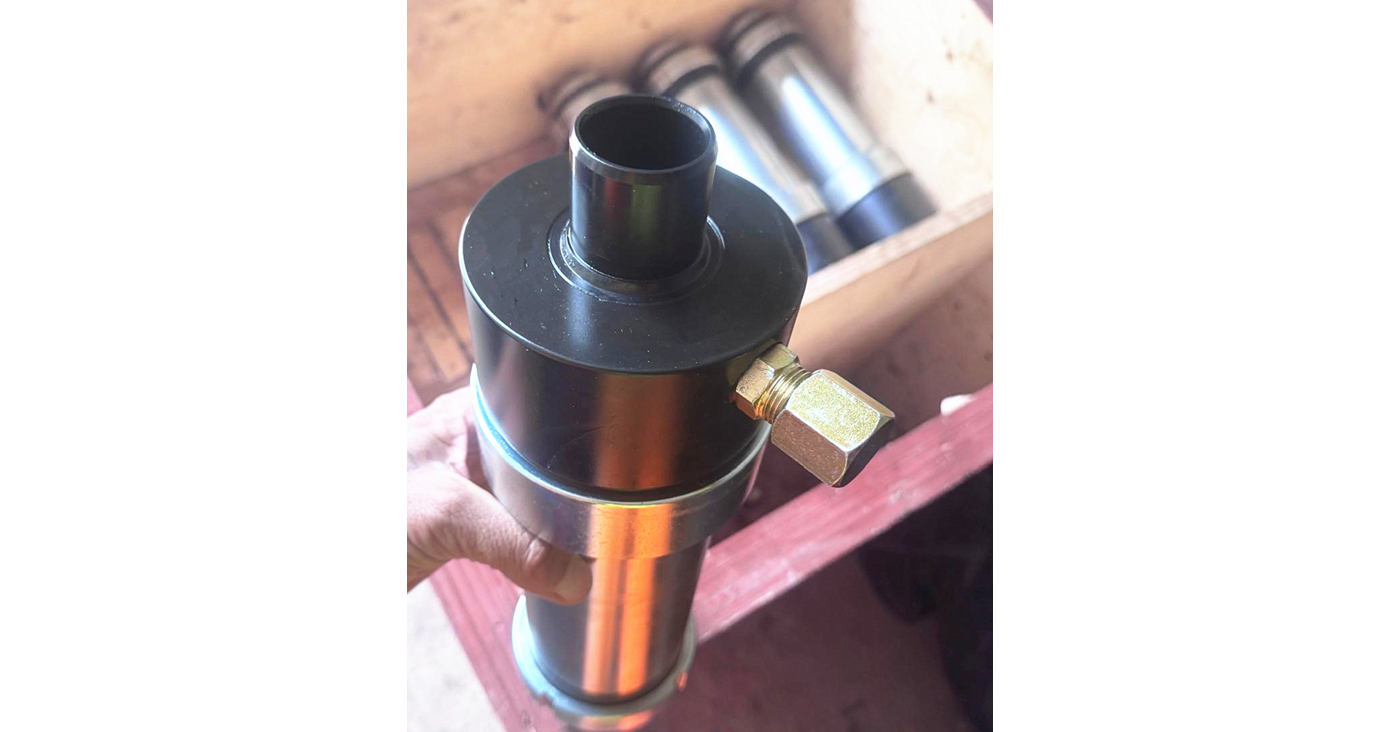

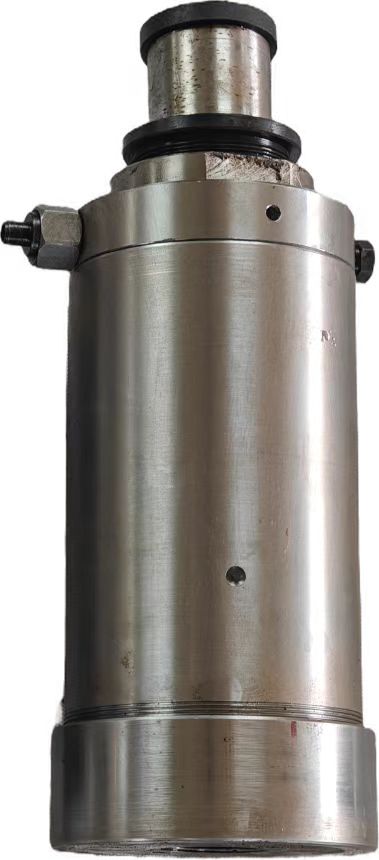

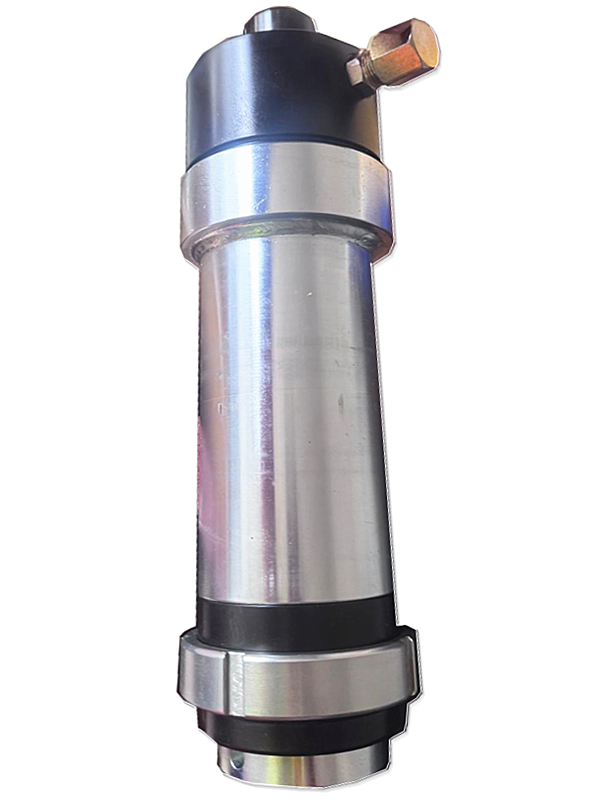

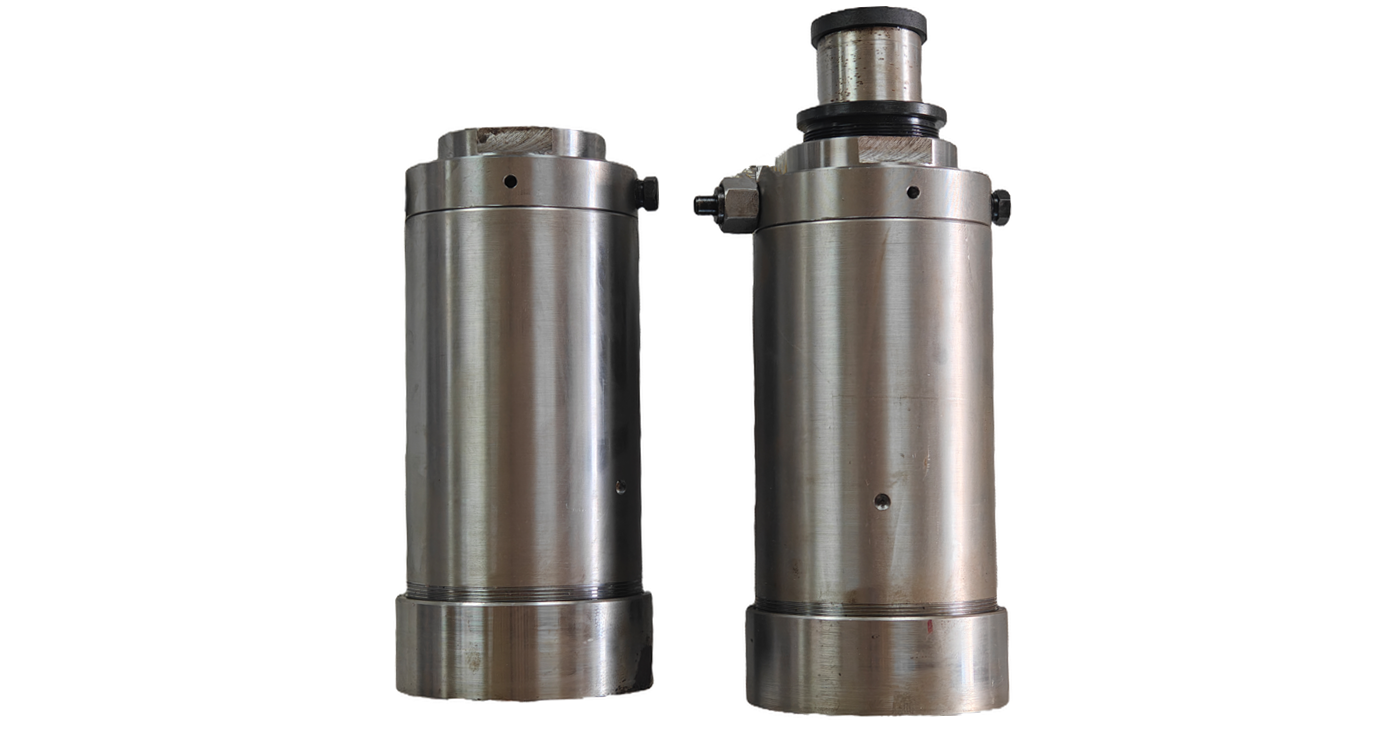

Zolo Slipform Hydraulic Jack(Euro Type)
Zolo slipform jack euro type is designed based on European models, making it more compliant with European operational standards.
Inquire Now
Share:
Overview
Zolo Slipform jack (euro type) is engineered in accordance with European climbing jack designs, ensuring
greater adherence to European formwork practices and standards.
Zolo Slipform Hydraulic Jack is a robust slipform equipment designed to enhance efficiency and precision in vertical
concrete construction projects. Engineered with advanced hydraulic technology, this jack facilitates
continuous pouring of concrete, making it ideal for constructing high-rise buildings, silos, chimney and towers etc.
| Key Features | ||
| 1. | Advanced Hydraulic System | Zolo hydraulic jack system ensures smooth and consistent operation, reducing the likelihood of delays and maintaining a steady construction pace. |
| 2. | Durable Construction | Built with high-strength materials, the slipform hydraulic jack is designed to withstand harsh construction environments, ensuring longevity and reliability. |
| 3. | Precision Control | The system allows for precise adjustments, enabling accurate placement of concrete and maintaining the structural integrity of the project |
| 4. | Enhanced Safety | Equipped with multiple safety features, including emergency stop functions and load monitoring systems, it ensures the safety of the workforce on-site |
| 5. | Versatile Applications | Suitable for a wide range of vertical construction projects, including bridges, dams, chimneys, and cooling towers |
| Benefits | ||
| 1. | Increased Efficiency | Streamlines the construction process by allowing continuous concrete pouring, reducing project timelines. |
| 2. | Cost-Effective | Minimizes labor costs and reduces the need for extensive scaffolding and formwork. |
| 3. | High-Quality Finish | Produces a smooth and uniform surface, enhancing the aesthetic and structural quality of the final product |
Zolo Slipform Hydraulic Jack is an essential tool for contractors and construction companies focused on delivering
high-quality, efficient, and safe vertical concrete structures.
Whether for industrial, commercial, or residential projects, our hydraulic jack system meets the demands of
modern construction standards.
Specifications
3Ton Hydraulic Jack Dimensions
| ZOLO ZYD SERIES SLIPFORM JACK | |||||
MODEL | ZYD-30E | ZYD-60E | ZYD-35C | ZYD-60C | ZYD-100C |
|  |
| |
| |
| LOCK TYPE | Wedge Jaw/Ball | Wedge Jaw/Ball | Wedge Jaw/Ball | Wedge Jaw/Ball | Wedge Jaw/Ball |
LIFTING CAPACITY | 30KN | 60KN | 35KN | 60KN | 100KN |
| UNIT WEIGHT | 13KGS | 21KGS | 14KGS | 24KGS | 30KGS |
| OVERALL DIMENSION | 110X110X430 | 140x140x480 | 160X160X245 | 160X160X280 | 160X160X420 |
| COMPATIBLE JACK ROD | Dia.32mm Steel Rod /Dia.34mm@5mm Thkns Steel Tube | Dia.32mm Steel Rod /Dia.34mm@5mm Thkns Steel Tube | Φ48mm 3.5mmThkns Steel Tube | Φ48mm 3.5mmThkns Steel Tube | Φ48mm 3.5mmThkns Steel Tube |
| ANTI-DROP DEVICE | Yes | Yes | Yes | Yes | Yes |
| LEVELING DEVICE | Yes | Yes | Yes | Yes | Yes |
