ZFORM™120 Steel Framed Wall Formwork

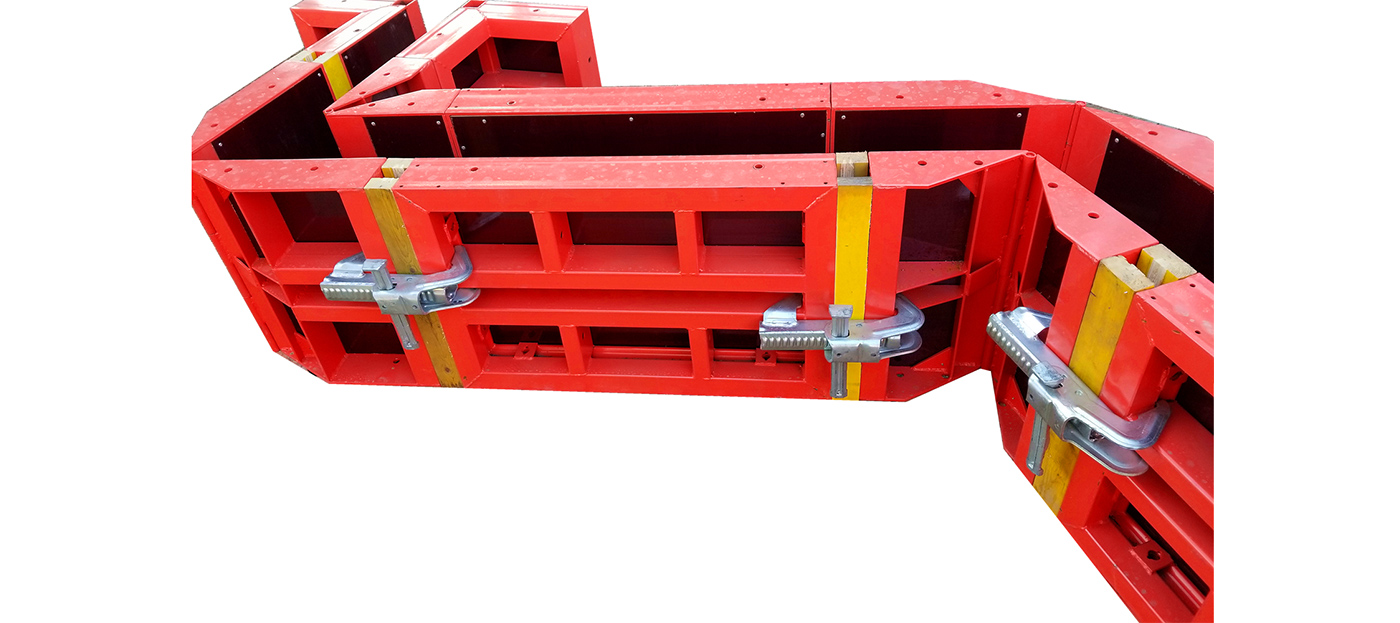

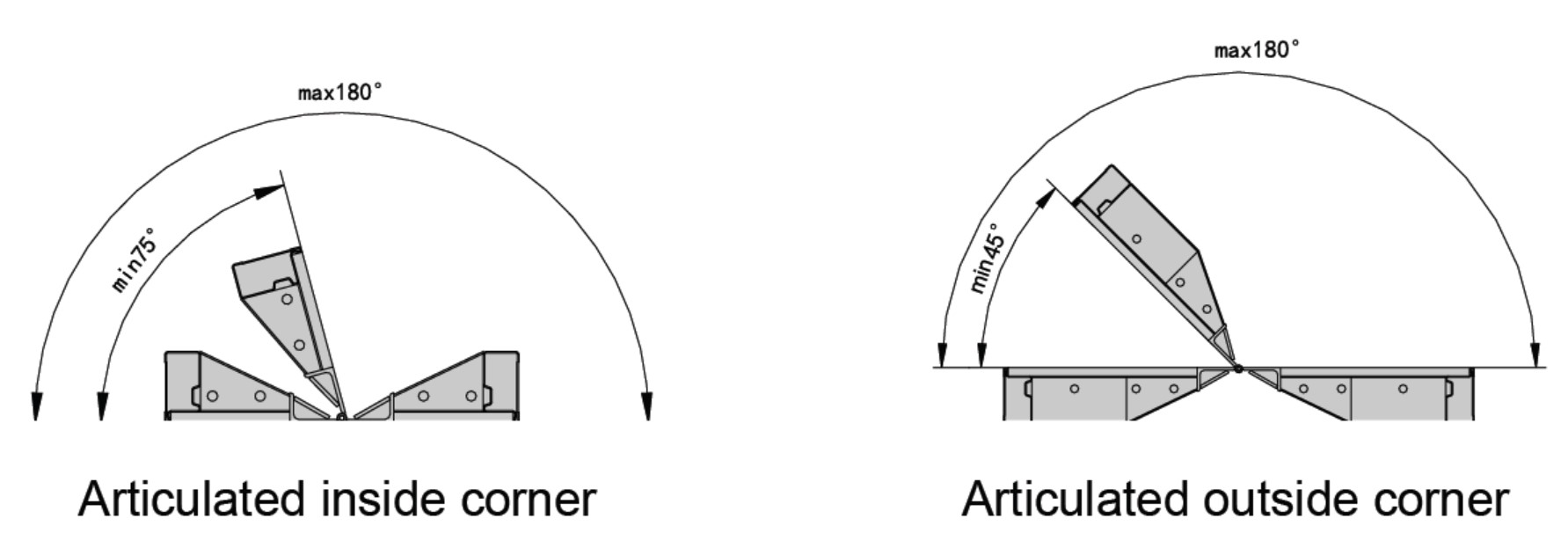

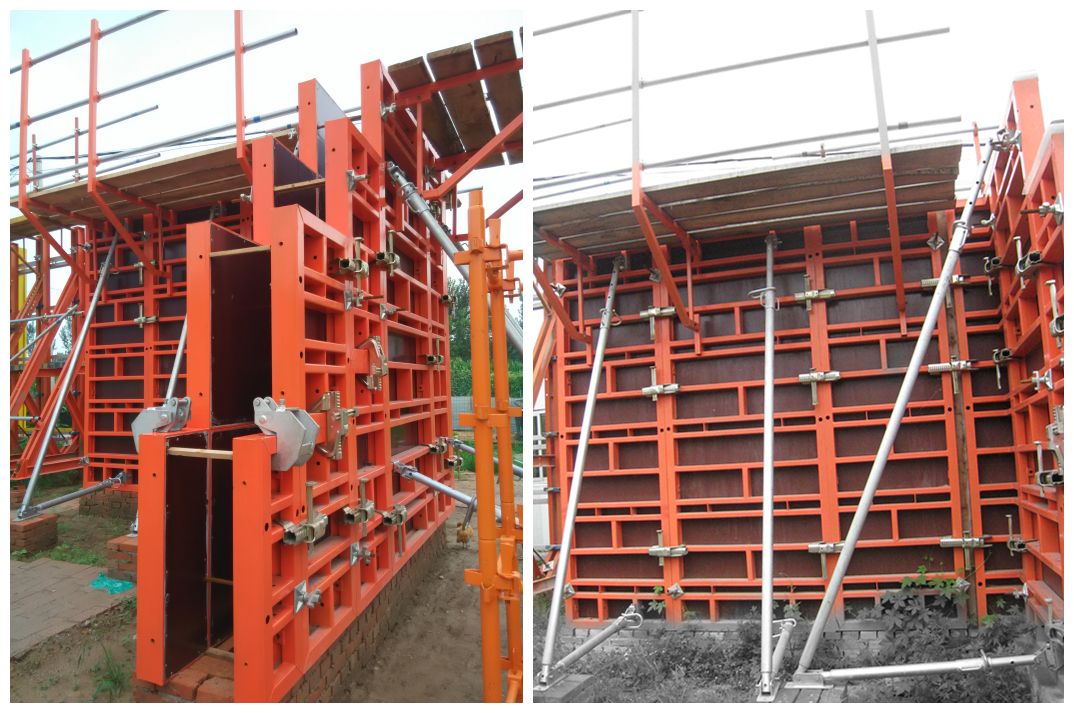

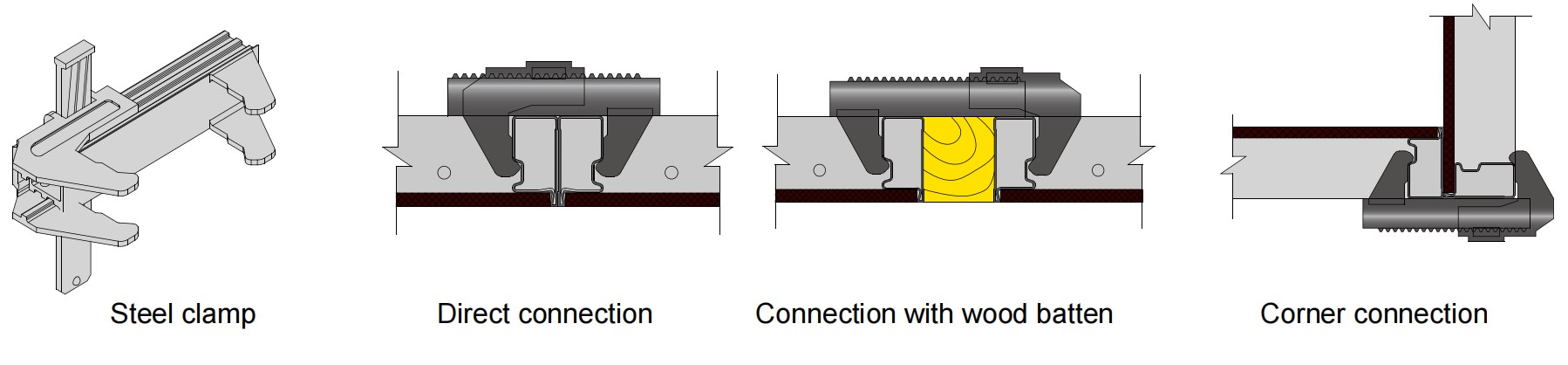

ZOLO ZFORM™120 Steel Framed Panel Wall Formwork is mainly used for wall casting, and the standard version has a total of 5 different heights and 6 different widths of panels. For pouring in special positions the combination of corner panels and adjustable panels can be used to achieve the pouring requirements. The connection of the panels is joint by a adjustbale alignment clamp, which is handy and rapid, and at the same time greatly reduces the investment of manpower and time.

Inquire Now

Overview

ZOLO ZFORM™120 Panel Wall Formwork follows the most popular formwork design concept in the world today, so it has excellent versatility and efficiency to meet the requirements of modern building construction.

With the use of large size panels, the concrete surface achieves fair-faced level, which is a precision and cost-effective choice for professional users.

Features

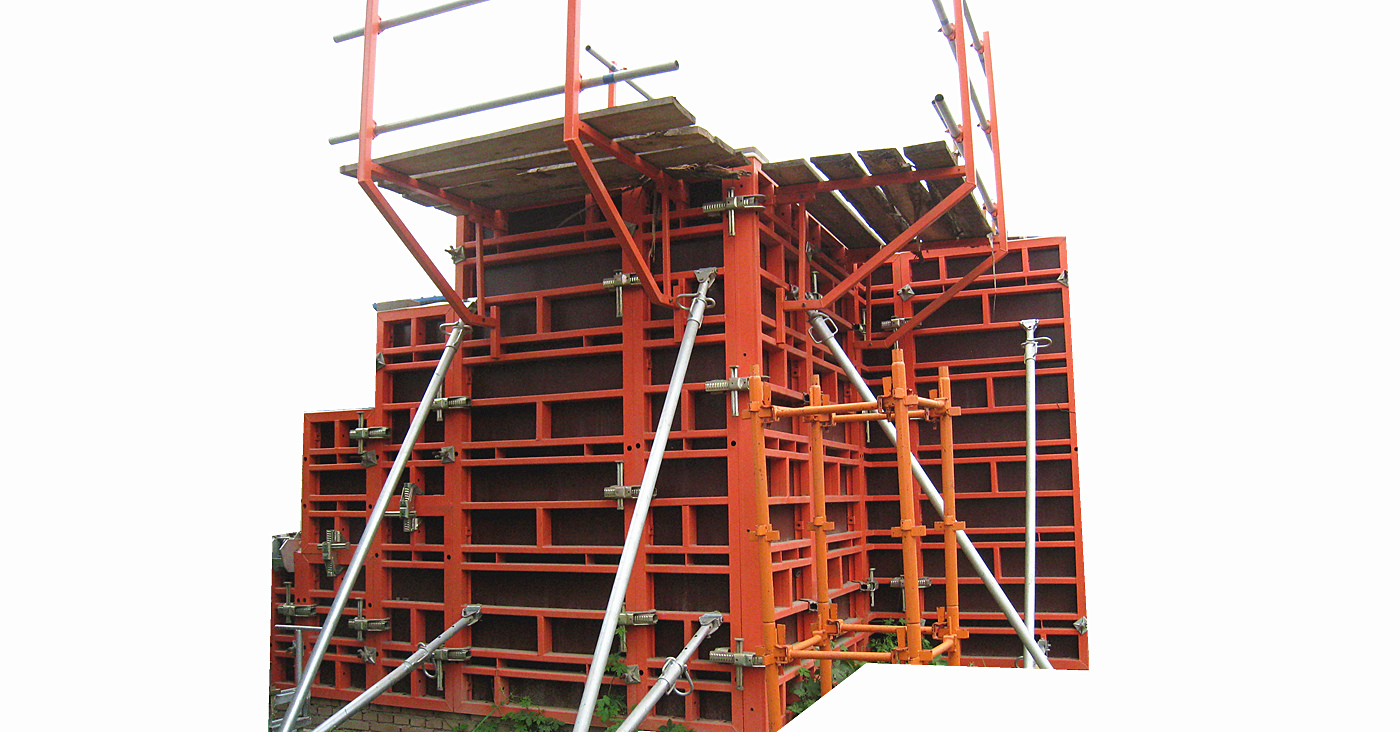

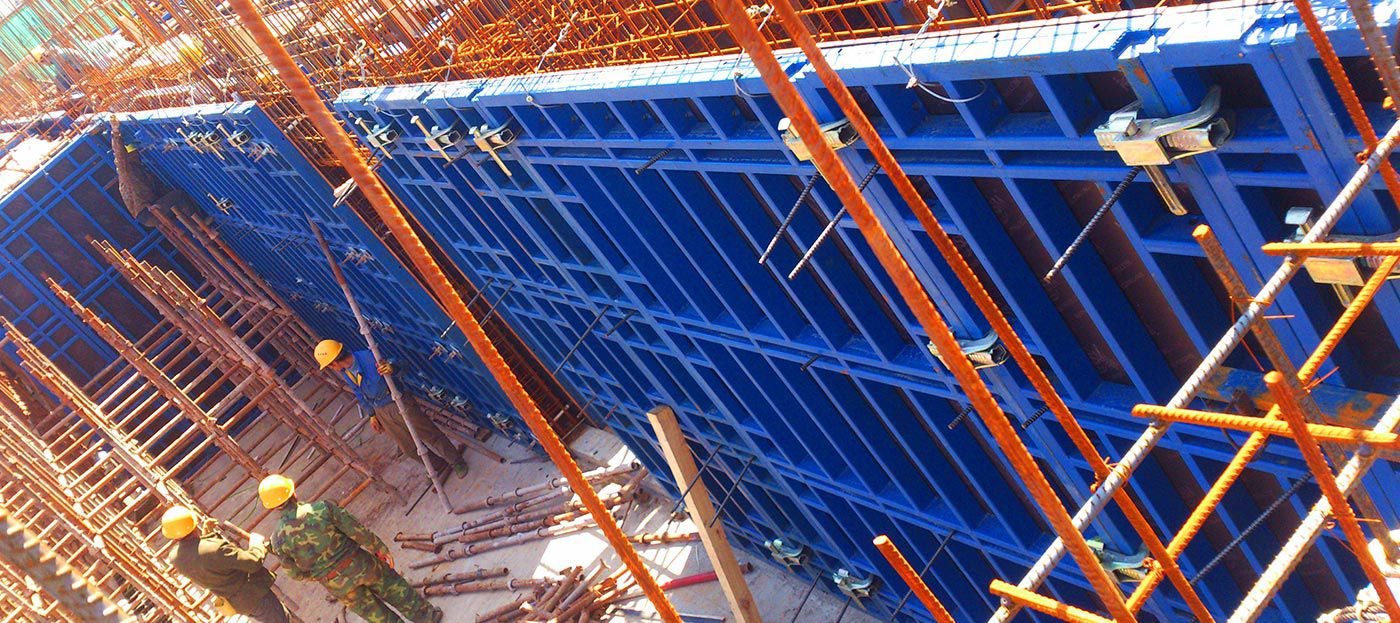

1. Perfect for the construction of all kinds of vertical concrete structures, both in building construction and civil works (walls, columns, abutments, footings.)

2. Highly efficient with minimum labour costs and erection time.

3. Consisting of panels that are joined with clamps to make sets. With effective and safe accessories in any type of application.

4. Designed to withstand high concrete pressures

5. The steel frame is highly strengthened, and the wall formwork can bear lateral pressure 60 KN/m² while the column formwork can bear 80 KN /m².

6. The plywood is screwed on from the back when connecting frame and plywood, so the surface of the fnished concrete is perfect

7. The formwork series are a complete system with a full set of accessories, and can be set up flexibly according to project demand.

Specifications

Material	Q355 High Strengthen Structure Steel+Powder Coatiing or Galvanized
Thickness of front panel	18 mm Z-PLY™ Grade A or Z-PLASTK™ PP Shuttering Board
Maximum Lateral Pressure for Column	80 KN/㎡
Maximum Lateral Pressure for Wall	60 KN/㎡
Height	300-3300 mm (can be customized)
Width	300-2400 mm (can be customized)

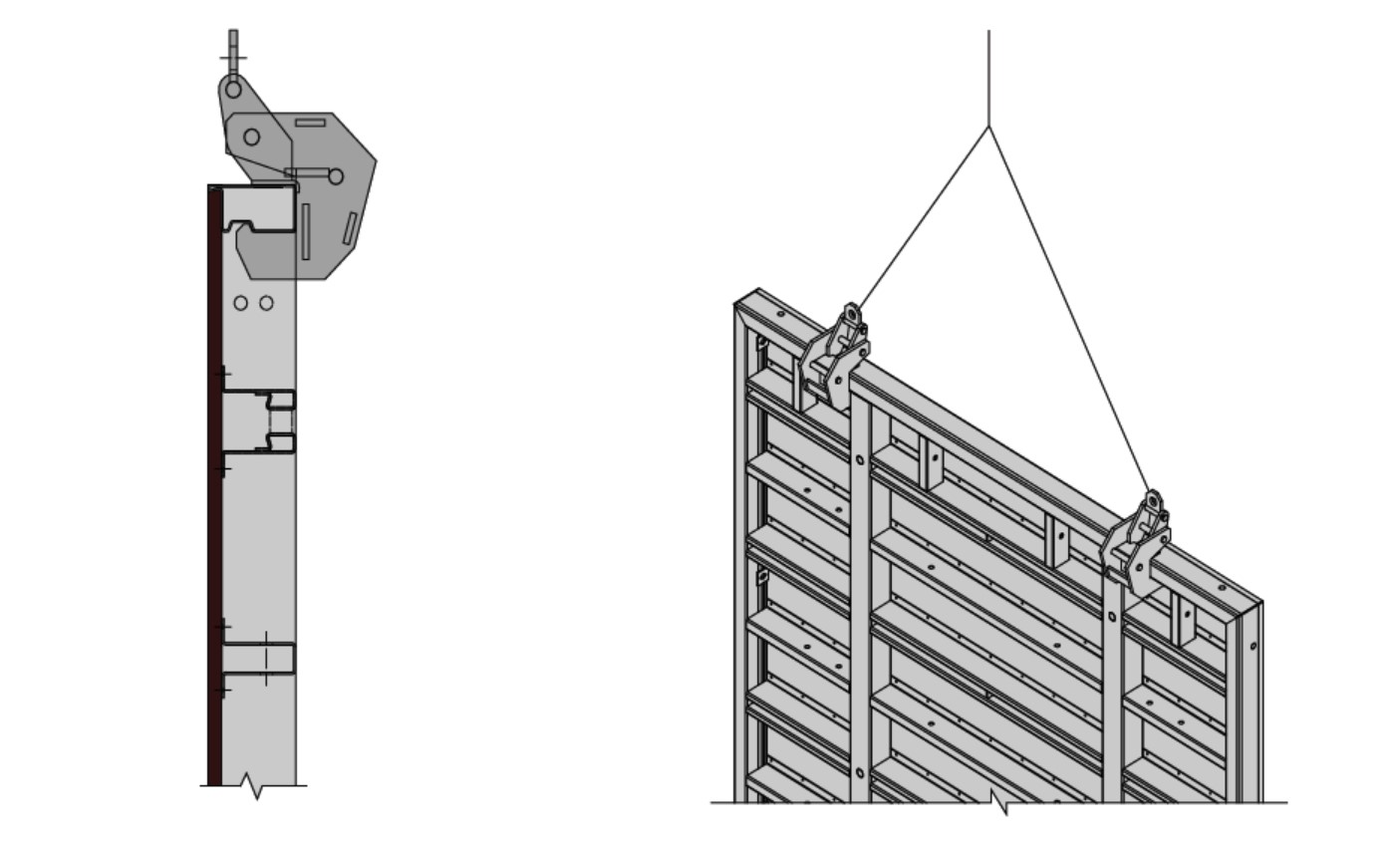

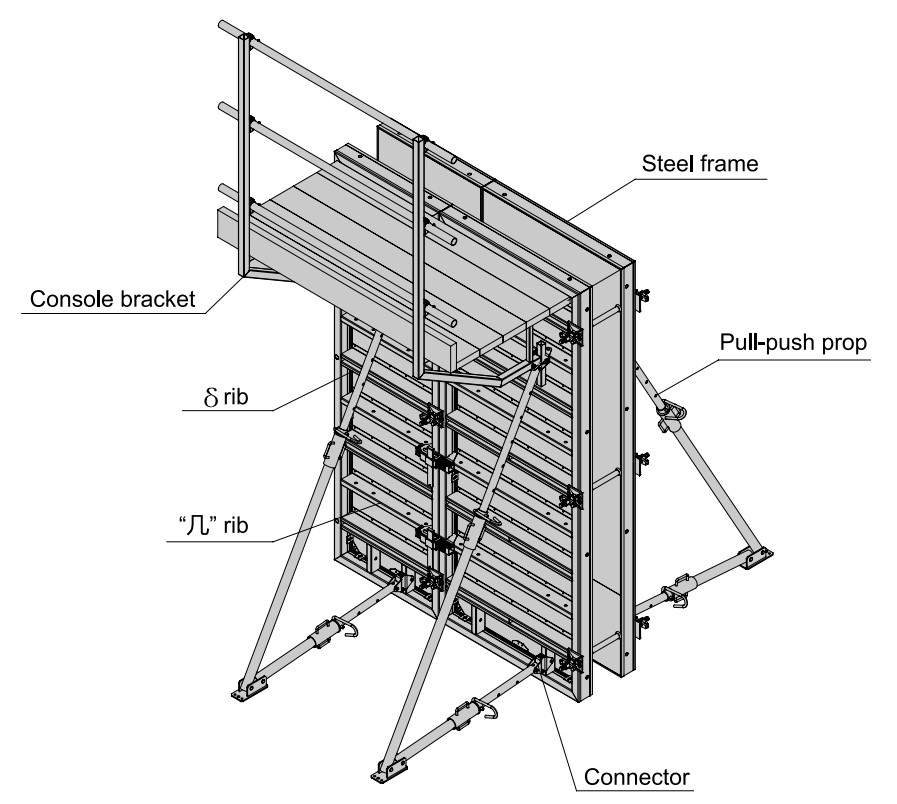

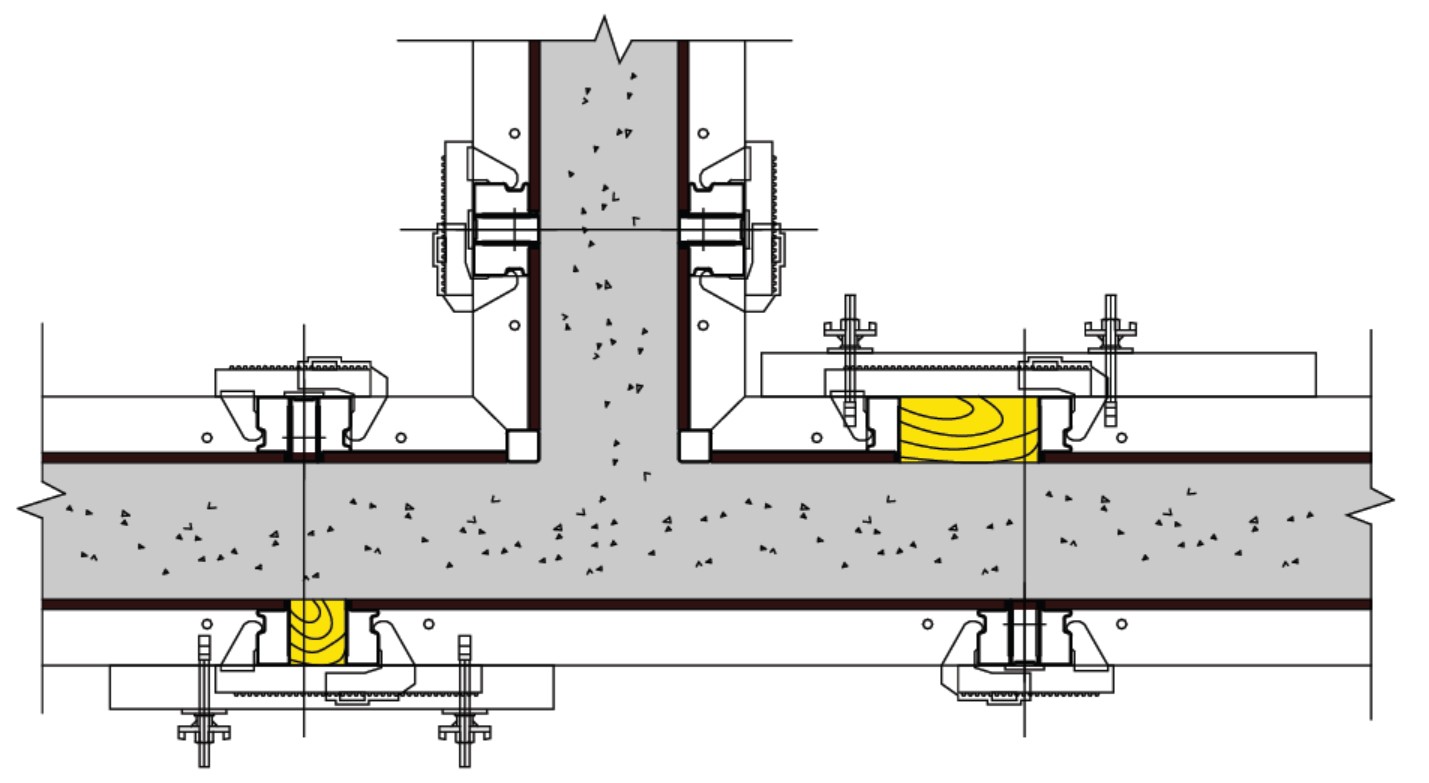

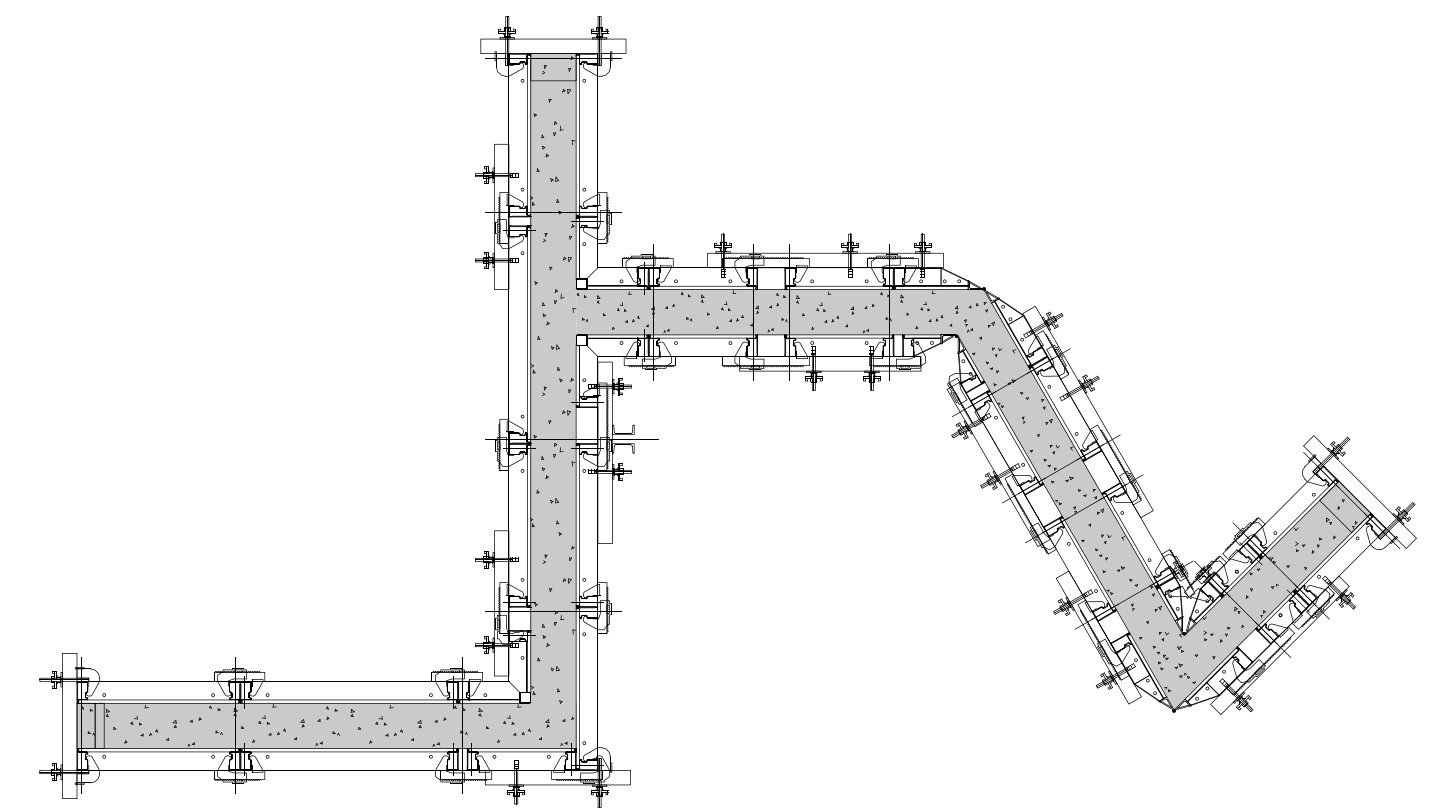

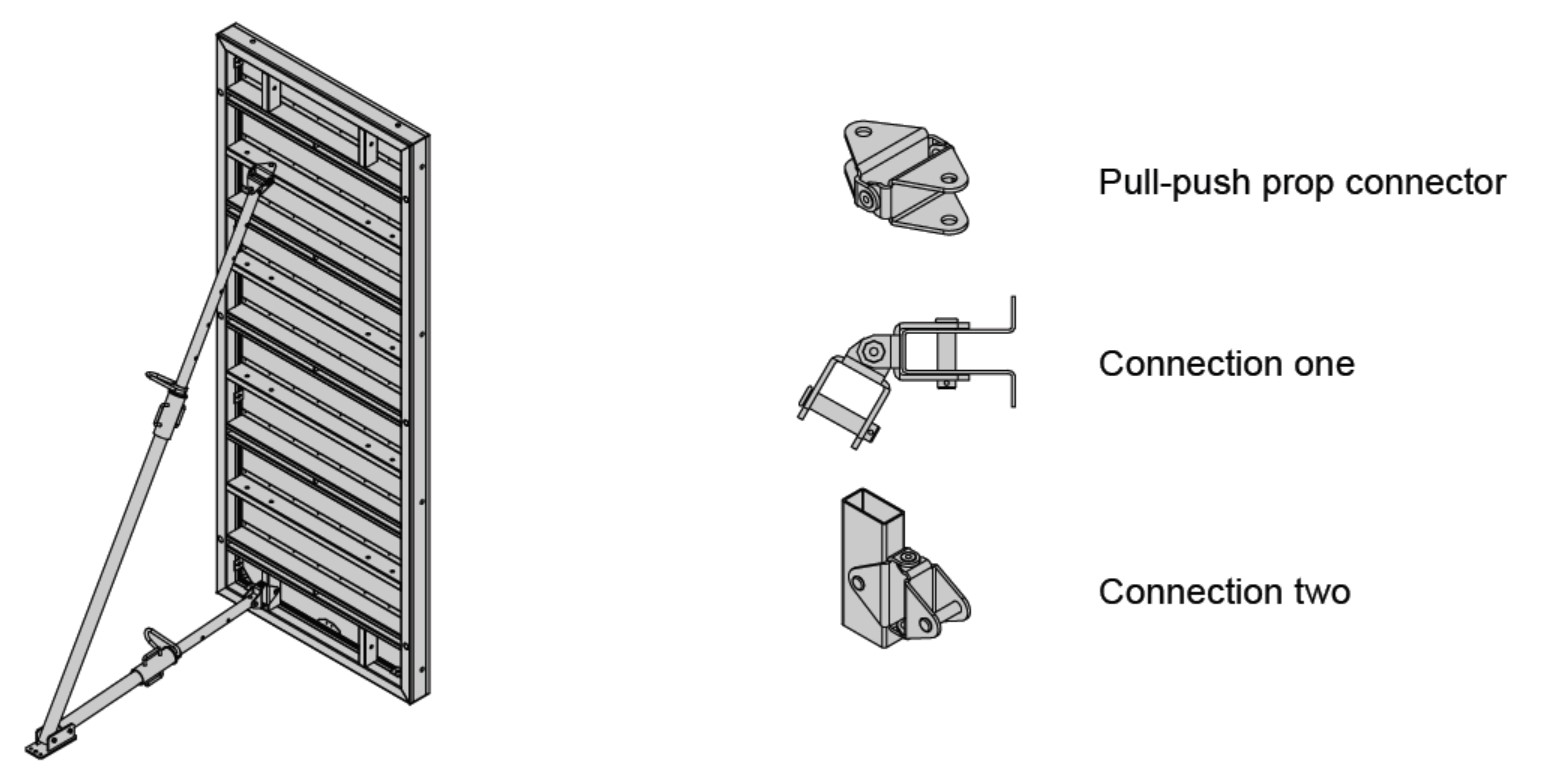

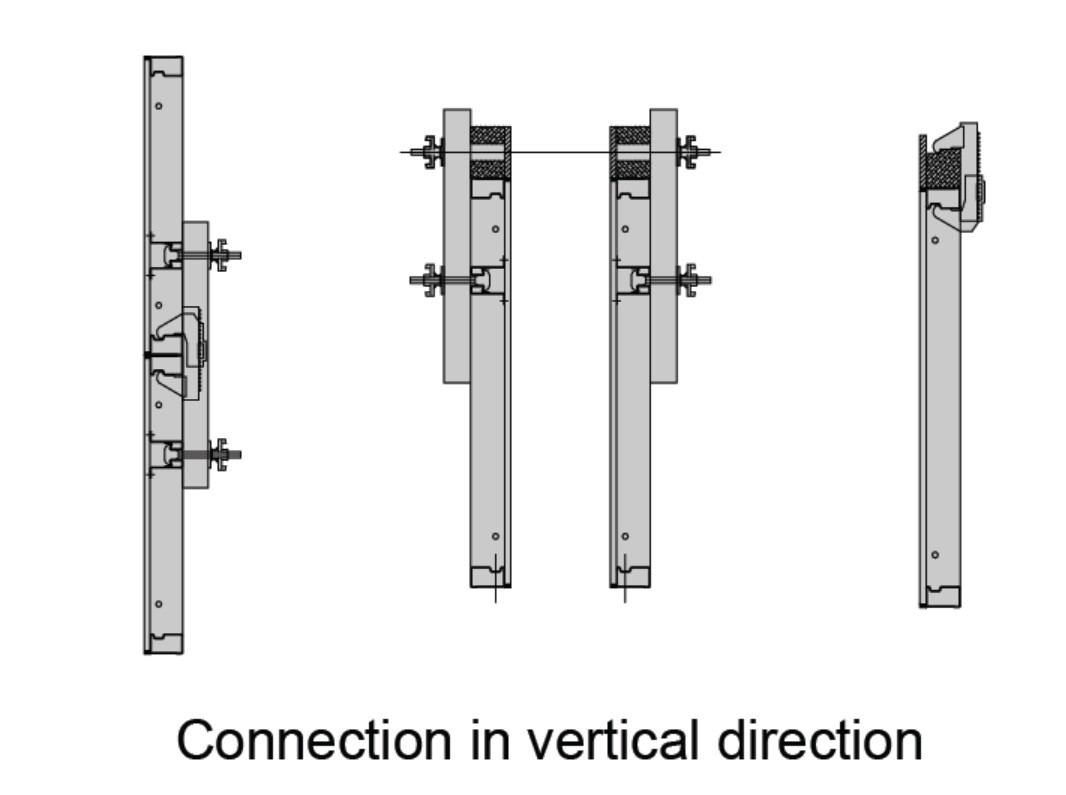

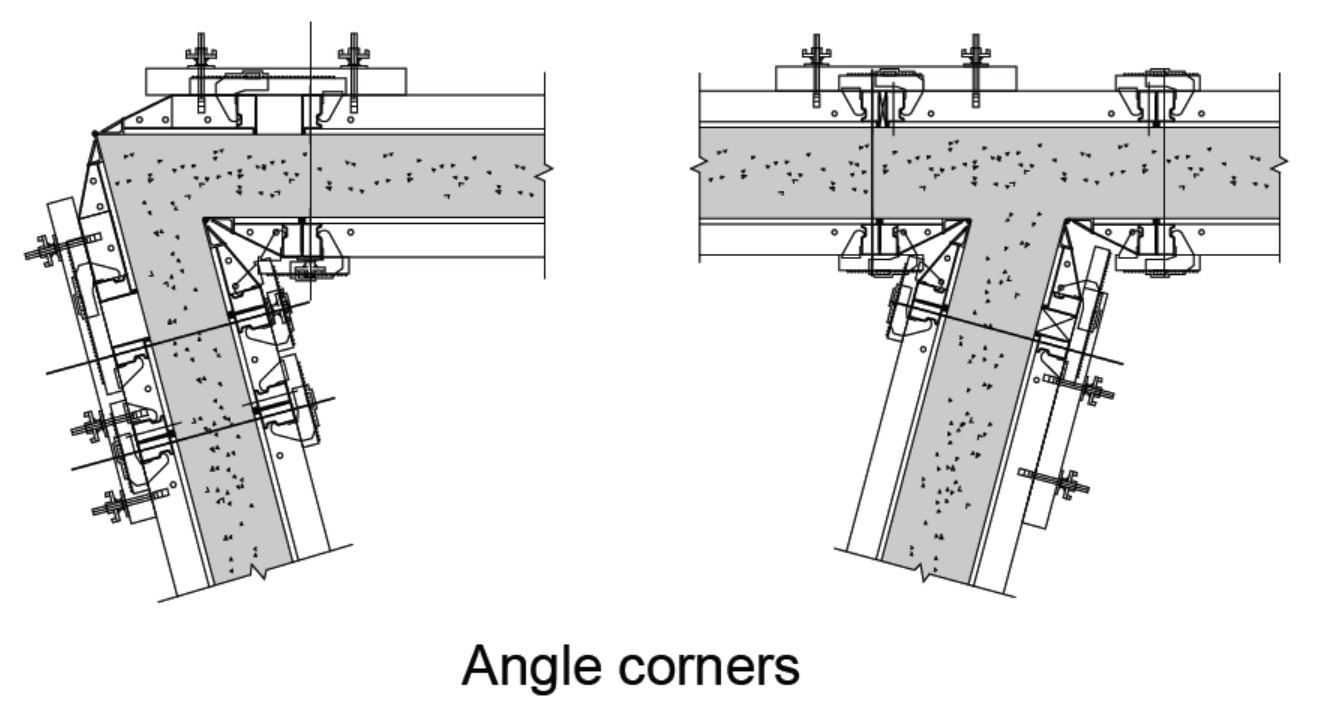

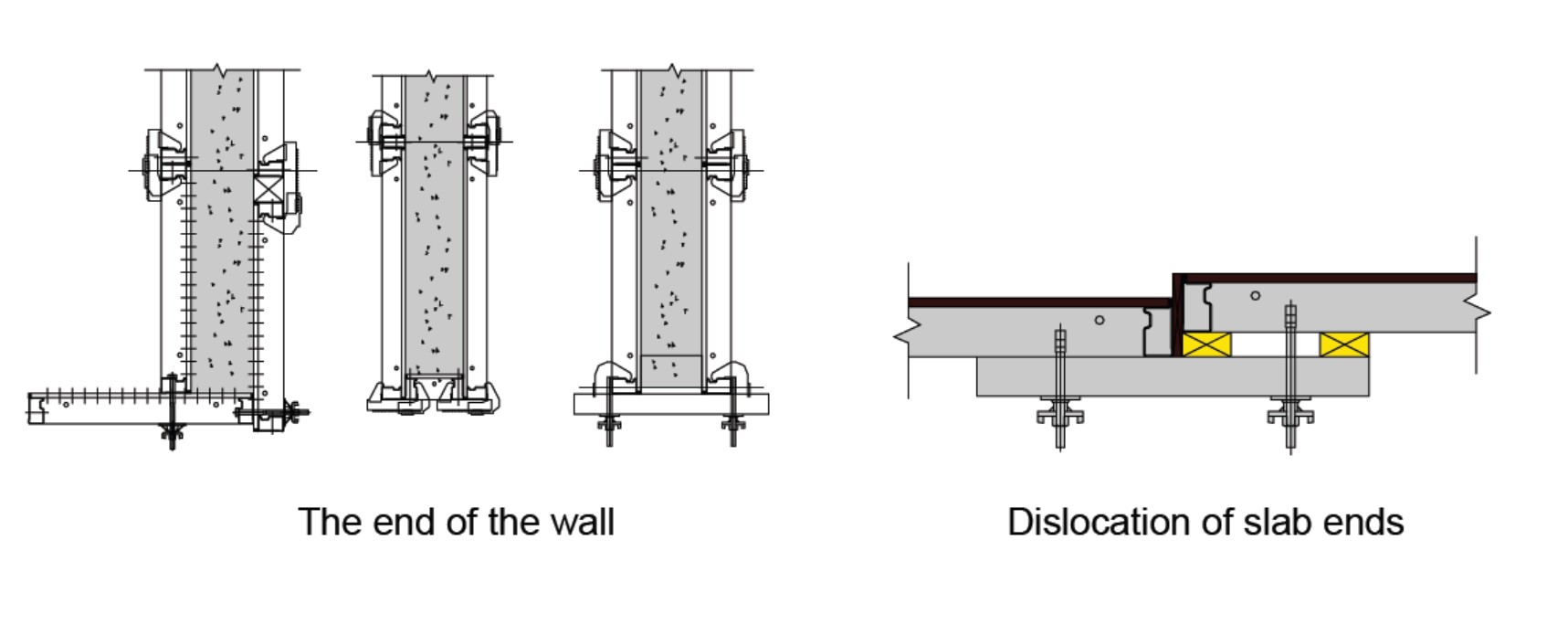

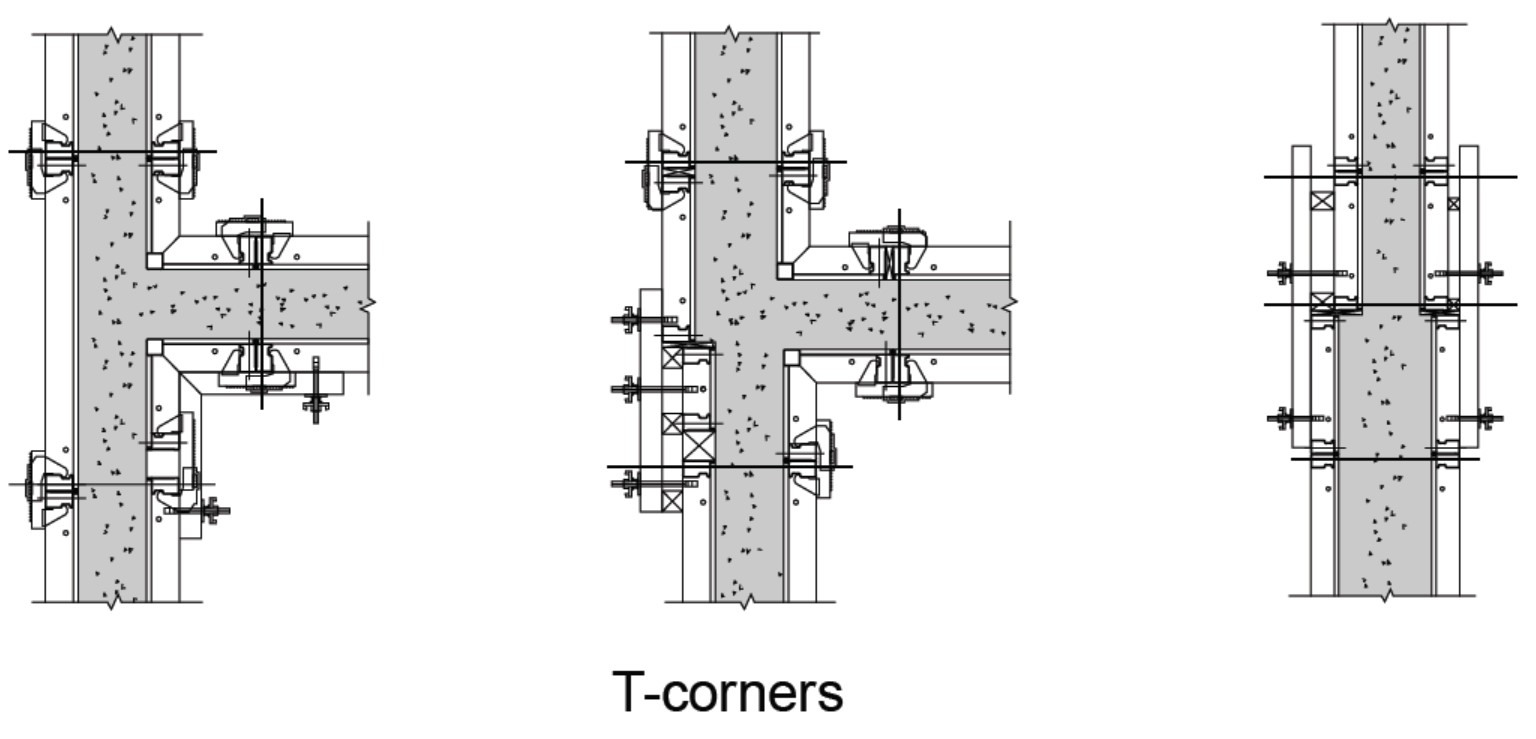

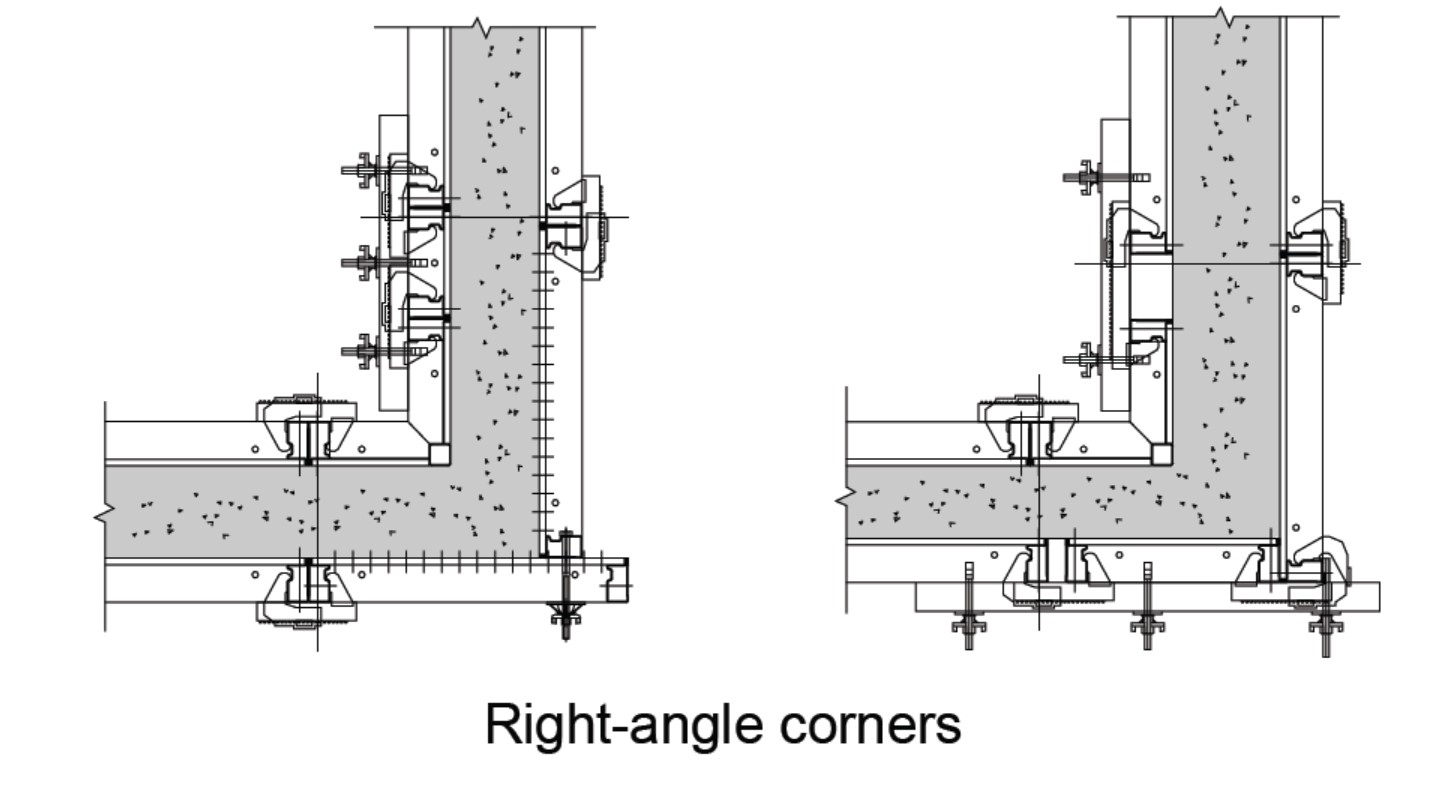

Details Sketch

ZFORM™120 Panel Wall Formwork
