How to Distinguish the Type of Column Formwork?

Jun. 20 ,2024 Share:

Distinguishing the type of column formwork involves identifying the materials and techniques used to construct the formwork. Here are some common types of column formwork and how to distinguish them:

Timber Formwork:

Appearance: Made from plywood or timber planks.

Characteristics: Can be customized to various shapes and sizes, generally used for small-scale projects or where unique shapes are needed.

Identification: Look for wooden panels or planks, nails or screws, and supporting beams.

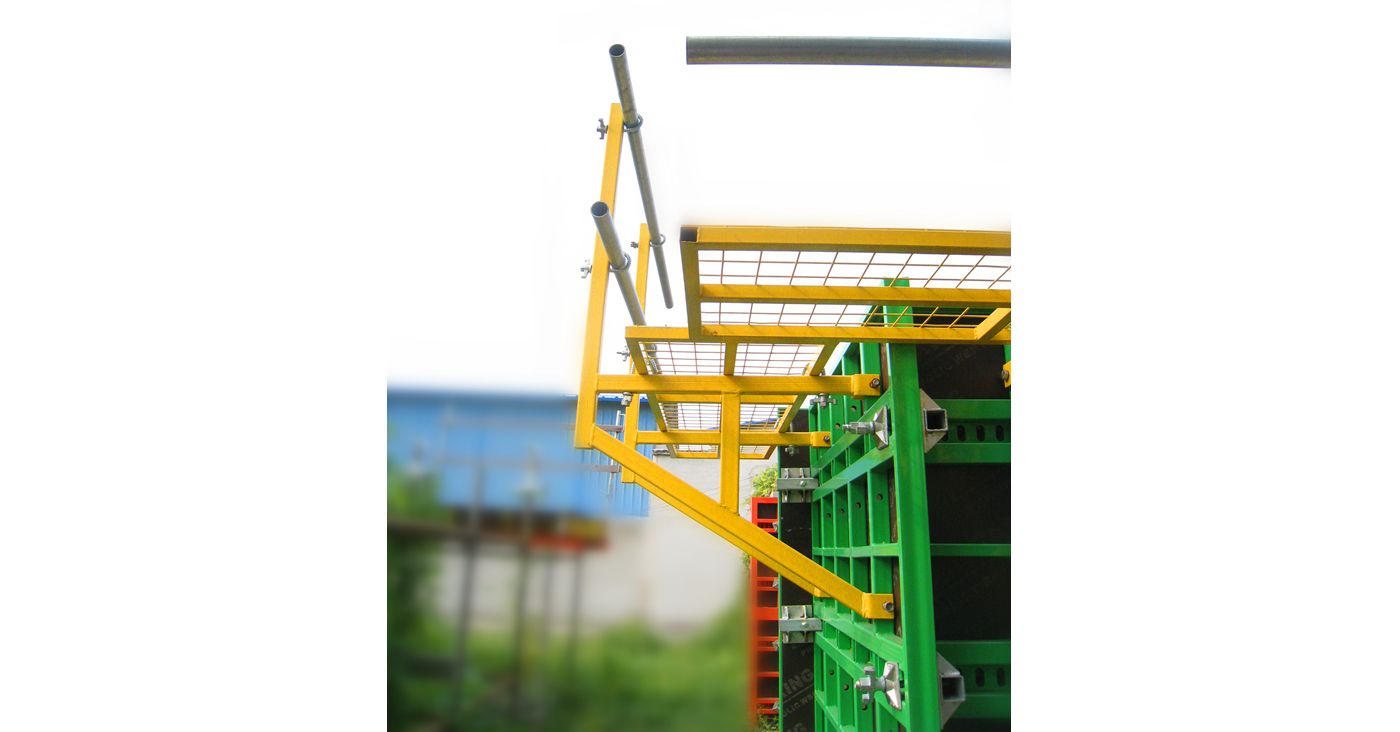

Adjustable Column Formwork

Adjustable Column Formwork

Steel Formwork:

Appearance: Made from steel plates and beams.

Characteristics: Highly durable, reusable, and provides a smooth finish. Suitable for large-scale projects.

Identification: Look for metal panels, bolts, and a uniform, sleek appearance.

Plastic Formwork:

Appearance: Made from lightweight, modular plastic panels.

Characteristics: Easy to handle and assemble, reusable, and often used for repetitive construction tasks.

Identification: Look for plastic panels, modular design, and interlocking components.

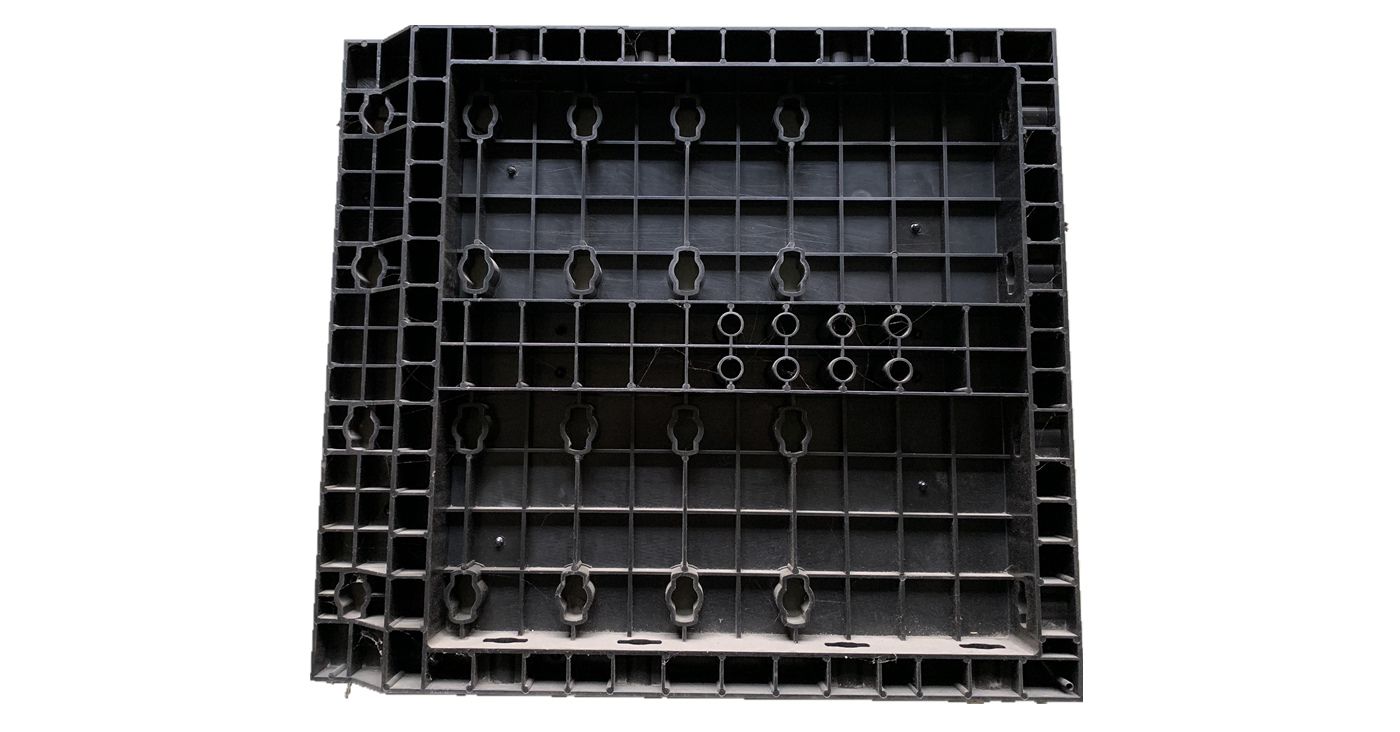

Adjustable Plastic Column Formwork

Adjustable Plastic Column Formwork

Aluminum Formwork:

Appearance: Made from aluminum panels.

Characteristics: Lightweight, strong, and reusable. Often used for high-rise buildings and structures with repetitive designs.

Identification: Look for metallic panels with a lighter weight compared to steel, and often modular in design.

Fabric Formwork:

Appearance: Made from flexible fabric sheets.

Characteristics: Allows for creative and organic shapes, often used in architectural projects requiring unique forms.

Identification: Look for fabric or textile material, often supported by a frame to hold the shape.

Stay-in-place Structural Formwork Systems:

Appearance: Components become part of the finished structure.

Characteristics: Provides additional strength, insulation, or finishes to the final structure.

Identification: Look for integrated materials like fiber-reinforced polymers or insulated concrete forms that remain in place after the concrete is poured.

Slip Forming:

Appearance: A continuously moving formwork system.

Characteristics: Used for constructing tall structures like towers and chimneys without joints.

Identification: Look for a moving framework, often accompanied by machinery for continuous pouring of concrete.

Steps to Identify the Type of Column Formwork:

Visual Inspection: Examine the material of the formwork. Look for the texture, finish, and connections.

Material Testing: If unsure, small samples can be tested to determine the material composition (wood, steel, plastic, etc.).

Construction Method: Observe the construction method. Modular systems often indicate plastic or aluminum formwork, while custom-built designs suggest timber formwork.

Usage Context: Consider the scale and type of the project. Large-scale projects might use steel or aluminum for durability and efficiency, while unique architectural designs might use fabric formwork.

By considering these factors, you can effectively distinguish between different types of column formwork used in construction projects.
